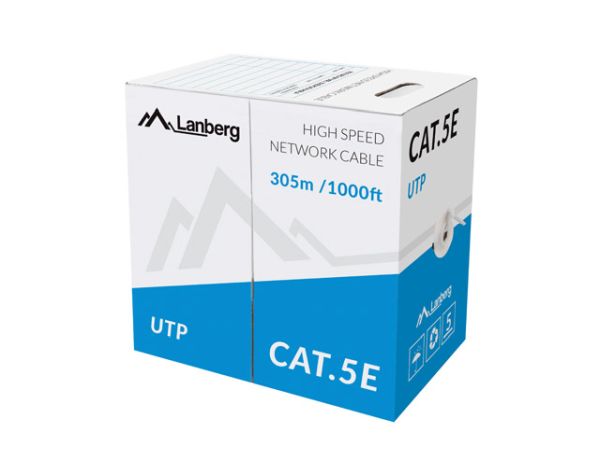

UTP Cable Cat5e 305m Lanberg Solid Gray CCA

Технички спецификации

Product specification

- LAN cable -

Data transmission rate

100Mb/s -

Shielding

U/UTP (without shielding) - Length 305m. - The wires are made of copper conductor cable (CCA). - AWG 24 (4*2*0.5mm). -

Conductor stranding

single wire. -

Color

grey RAL7035. - Printed length counter at every meter of cable. -

External PVC insulation

5.0mm. -

HDPE conductor insulation

0.93mm. - Operation up to 100Mhz. -

Package

cardboard box. - Packaging dimensions (W x D x H): 36x23x36 cm. Electrical characteristics (20 degrees): - Conductor resistance (max.): 60 - 90Om / 305m. - Insulation resistance (min.): 5000mOm km. -

Pair-to-Ground capacitance

< 330PF / 100m. -

Characteristic impedance

< 100Om (+/- 15). - Transport and storage temperature: 0 - 60 degrees. -

Operating temperature

-20 - 70 degrees. -

Working distance

100-120m.

PURPOSE

Cable only for division into shorter sections (up to 10m). Only for installation without fluke certification requirement (EN 50173).
