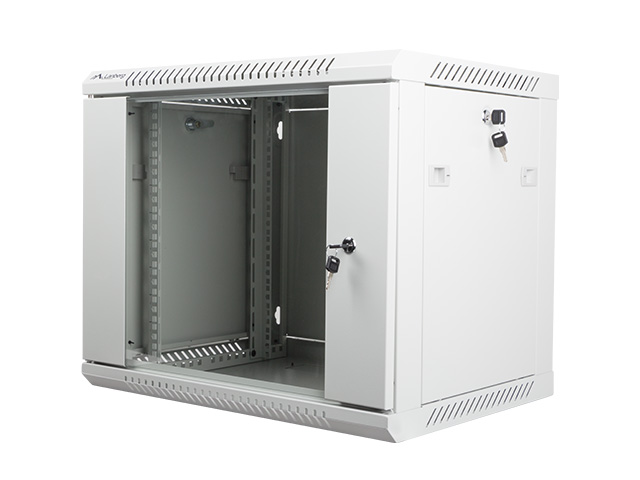

Rack Cabinet 19" 9U Metal 600x450 Lanberg Wall-Mounted Demounted Grey

Технички спецификации

Features

-

Manufactuer

Lanberg, -

Manufactuer code

WF01-6409-10B, -

Cabinet type

Wall mount, -

Body color

Grey RAL7035, -

Height

9U, - Cabinet dimensions (W x D x H): 600x450x501 mm, - Packaging dimensions (W x D x H): 46x61x22 cm, - Spacing between rack rails: 450 mm, - Spacing between holes in rack rails: 475 mm, - Internal spacing between rack rails: 500 mm, -

Loading capacity

max. 60 KG, -

Degree of protection

IP20, -

Doors type

Temper glass, -

Standard

ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1 & PART7, ETSI, -

Material

High grade cold rolled steel, powder coated, -

Fan avaliable

Yes, 120mm, 110V or 220V, -

Thickness

Mounting profile - 1,50mm, Others - 1,2mm, -

Cable entry panel

Top, Bottom, -

Included

Accessory bag, earth kit, front door lock, two side panels with locks, 10 cage nuts M6.
