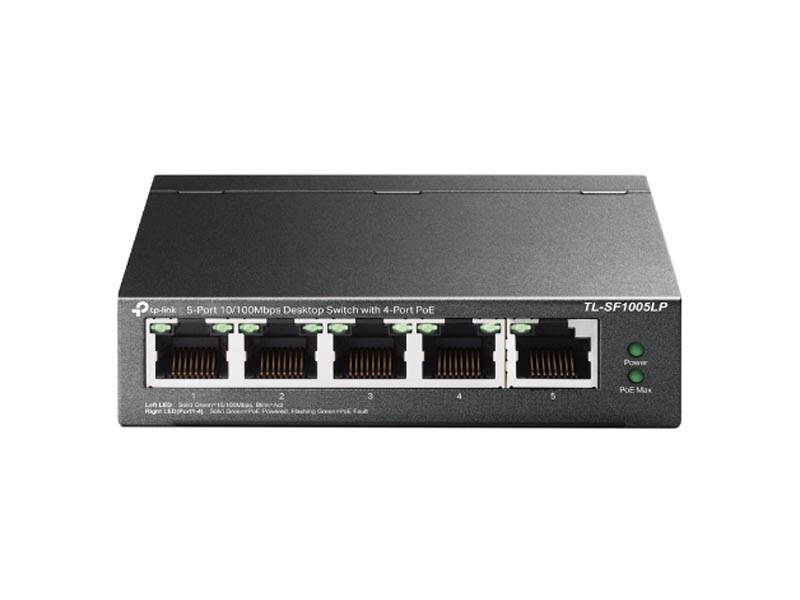

TP-Link Switch 5port Desktop TL-SF1005LP w/4port POE

Технички спецификации • 4? 10/100 Mbps PoE+ ports with up to 30 W PoE output per port* • 41 W total PoE budget* • Up to 250m data and power transmitting range under Extend Mode** • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application. • Automatically reboots your dropped or unresponsive PoE-powered devices. • Simply plug and play for instant connectivity with no configuration required. • Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses. • Desktop / Wall-mounting Specifications HARDWARE FEATURES Interface: • 5? 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af/at PoE) • AUTO Negotiation • AUTO MDI/MDIX Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100? STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100? STP (maximum 100m) Fan Quantity: Fanless Physical Security Lock: Yes External Power Supply: External Power Adapter (Output: 53.5 V DC / 0.81 A) Packet Forwarding Rate: 0.744 Mpps PoE Ports (RJ45): • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 41 W Mac Address Table: 2K Jumbo Frame: 2 KB Switching Capacity: 1 Gbps Dimensions ( W x D x H ): 3.9?3.9?1.0 in (100?98?25 mm) Max. Power Consumption: • 1.9 W (220 V / 50 Hz, no PD connected) • 47 W (220 V / 50 Hz, with 41 W PD connected) Max Heat Dissipation: • 6.48 BTU/h(no PD connected) • 160.27 BTU/h(with 41 W PD connected) SOFTWARE FEATURES Advanced Features: • Extend Mode: Ports 1–4 • Priority Mode: Ports 1–2 • PoE Auto Recovery: Ports 1-4 • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode Transmission Method: Store-And-Forward OTHERS Certification: FCC, CE, RoHS Package Content: • TL-SF1005LP • Power Adapter • Installation Guide Environment: • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing https://www.tp-link.com/en/business-networking/soho-switch-unmanaged/tl-sf1005lp/
