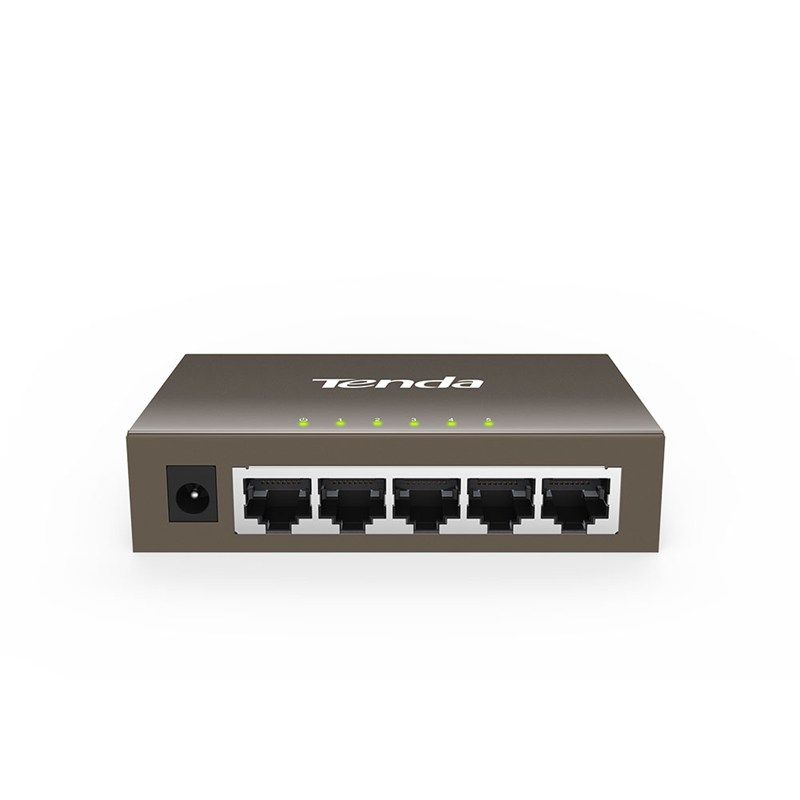

Tenda Switch 5port Gigabit Desktop TEG1005D

Технички спецификации

TEG1005D Five-port Gigabit desktop switch TEG1005D Integrated with professional a lightning protection circuit that offers 6KV lightning protection to each port to effectively prevent lightning-induced current from damaging the ports or switch, so as to ensure the surveillance system stability. Standard&Protocol: IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE802.3ab

Transmission Media

100BASE-TX/1000BASE-T: Cat.5, Cat.5e or Above(?100m)UTP/STP

Interface

5*10/100/1000Mbps auto-negotiation RJ45 ports, auto

MDI/MDIX Lightning Protection

6KV for 5

Ports LED indicator

1*power LED,5*10/100/1000Mbps

Link/Act LEDs Dimension

100mm?64mm?25mm(W*D*H)

Forwarding Mode

Store-and-Forward

MAC Address Table

2K

Forwarding Rate

10BASE-T:14881pps/port , 100BASE-TX:148810pps/port , 1000BASE-T:1488100pps/port

Backbound Bandwidth

10Gbps

Power Input

100~240V AC,50/60Hz

Power Output

5V DC,0.6A

Temperature

Operation Temperature:-10°C~45°C,

Storage Temperature

-40°C~70°C

Humidity

Operation Humidity:10%~90% RH(non-condensing), Storage Humidity:5%~90% RH(non-condensing)
