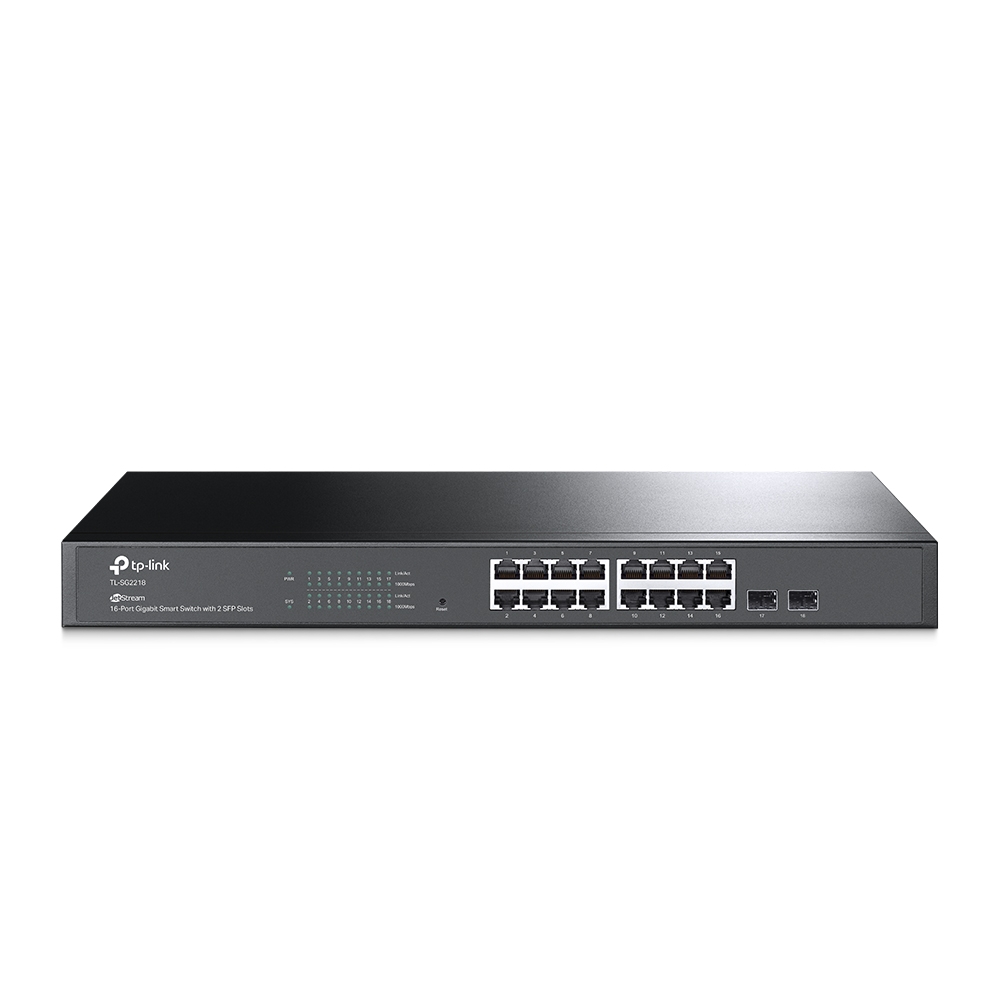

TP-Link Switch 16port 10/100/1000 TL-SG2218 Rack mountable w/2 SFP ports

Технички спецификации

•

Full Gigabit Ports

16? gigabit RJ45 ports and 2? gigabit SFP Slots provide high-speed connections. • Integrated into

Omada SDN

Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring. •

Centralized Management

Cloud access and Omada app for ultra convenience and easy management. •

Static Routing

Helps route internal traffic for more efficient use of network resources. •

Robust Security Strategies

IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more. • Optimize Voice and

Video Applications

L2/L3/L4 QoS and IGMP snooping. •

Standalone Management

Web, CLI (Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities Specifications

HARDWARE FEATURES Interface

• 16? 10/100/1000 Mbps RJ45 Ports • 2? Gigabit SFP

Fanless Power Supply

100-240 V AC~50/60 Hz Dimensions ( W x D x H ): 17.3 ? 7.1 ? 1.7 in (440 ? 180 ? 44 mm)

Mounting

Rack Mountable Max.

Power Consumption

12.3 W (220 V/50 Hz)

Max Heat Dissipation

41.97 BTU/hr

PERFORMANCE Switching Capacity

36 Gbps

Packet Forwarding Rate

26.8 Mpps

MAC Address Table

8K

Jumbo Frame

9 KB SOFTWARE FEATURES

Quality of Service

• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling • SP (Strict Priority) • WRR (Weighted Round Robin) • SP+WRR • Bandwidth Control • Port/Flow based Rating Limiting • Smoother Performance • Action for Flows • Mirror (to supported interface) • Redirect (to supported interface) • Rate Limit • QoS Remark L3

Features

• 16 IPv4/IPv6 Interfaces • Static Routing • 48 static routes • Static ARP • 316 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay • DHCP L2 Relay L2 and L2+

Features

• Link Aggregation • Static link aggregation • 802.3ad LACP • Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol • 802.1d STP • 802.1w RSTP • 802.1s MSTP •

STP Security

TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect • Loopback Detection • Port-based • VLAN based • Flow Control • 802.3x Flow Control • HOL Blocking Prevention • Mirroring • Port Mirroring • CPU Mirroring • One-to-One • Many-to-One •

Tx/Rx/Both Advanced Features

• Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration •

Reboot Schedule VLAN

• VLAN Group • Max 4K VLAN Groups • 802.1q Tagged VLAN •

MAC VLAN

12 Entries •

Protocol VLAN

Protocol Template 16, Protocol VLAN 16 • GVRP •

Voice VLAN Security

• IP-MAC-Port Binding • DHCP Snooping • ARP Inspection • IPv4 Source Guard • IPv6-MAC-Port Binding • DHCPv6 Snooping • ND Detection • IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security • Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control • kbps/ratio/pps control mode • IP/Port
