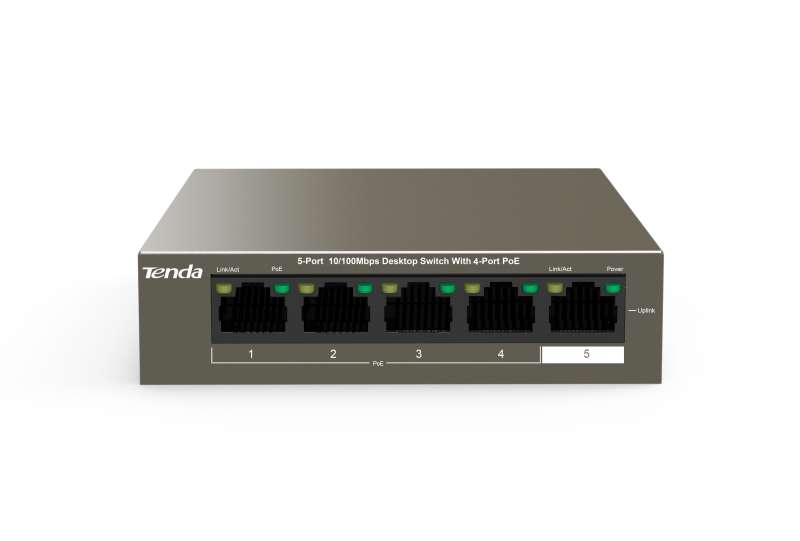

Tenda Switch 5Port TEF1105P-4-63W 10/100Mbps w/4port PoE

Технички спецификации

TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device. Standard&Protocol: IEEE 802.3?IEEE 802.3u?IEEE 802.3ab?IEEE 802.3af?IEEE 802.3at

Indicator

5*Link/Act per device, 4*PoE per device, 1*Power per device

Interface

4 10/100Base-Tx ports(Data/Power), 10/100Base-Tx port(Data)

Lightning Protection

6KV Store &

Yes Exchange capacity

1 Gbps

Packet Forwarding Rate

0.744Mpps

MAC Address Table

2K

PoE supply management

Port 1 to Port 4 support IEEE802.3at/af PoE standard

PoE through pin

1 2 4 5 +,3 6 7 8 -

Power Input

AC:100-240V~ 50/60Hz

Dimension

100*100*26mm ( W x D x H )

Power Consumption

in full configuration:<63W, PoE Max Power Supply:58W

Operating Temperature

0?~40? (32?~104?),

Storage Temperature

-40?~70? (-40?~158?),

Operating Humidity

10%~90% non-condensing,

Storage Humidity

5%~90% non-condensing

More info

https://www.tendacn.com/en/product/TEF1105P-4-63W.html
