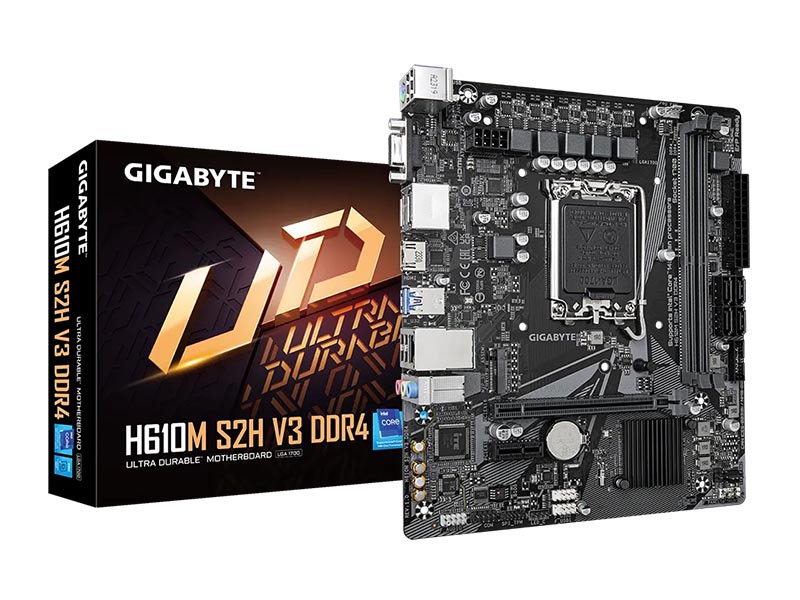

MB Gigabyte H610M S2H V3 DDR4 LGA1700 3200MHz SATA3 M.2 USB3.2 GBit LAN PCIe 4.0 HDMI/VGA/2xDP

Технички спецификации

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with

CPU Chipset

Intel® H610

Express Chipset Memory

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Onboard Graphics Integrated Graphics Processor-Intel® HD

Graphics support

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz

Audio

Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

LAN

Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps

Expansion Slots CPU

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface Chipset

1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors

USB Chipset

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0

Hub

4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header

Back Panel Connectors

1 x PS/2 keyboard/mouse port 1 x D-Sub port 2 x DisplayPorts 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

I/O Controller

iTE® I/O Controller

Chip Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 22.3cm x 19.3cm
