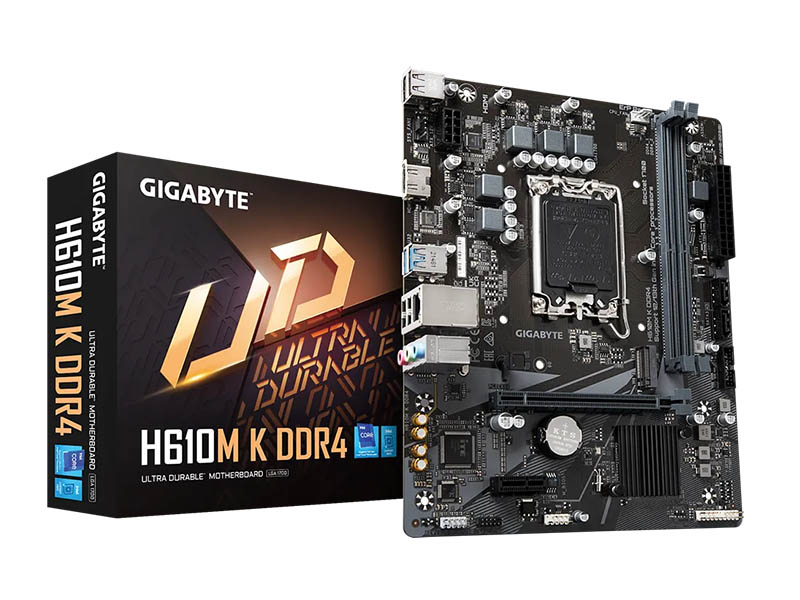

MB Gigabyte H610M K DDR4 LGA1700 3200MHz SATA3 M.2 USB3.2, GBit LAN, PCIe 4.0, HDMI

Технички спецификации

CPU

LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with

CPU Chipset

Intel® H610

Express Chipset Memory

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture

Onboard Graphics

Integrated Graphics Processor-Intel® HD

Graphics support

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.

Audio

Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots CPU

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface Chipset

1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors

USB Chipset

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper

Back Panel Connectors

1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

I/O Controller

iTE® I/O Controller

Chip Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 22.6cm x 18.5cm
