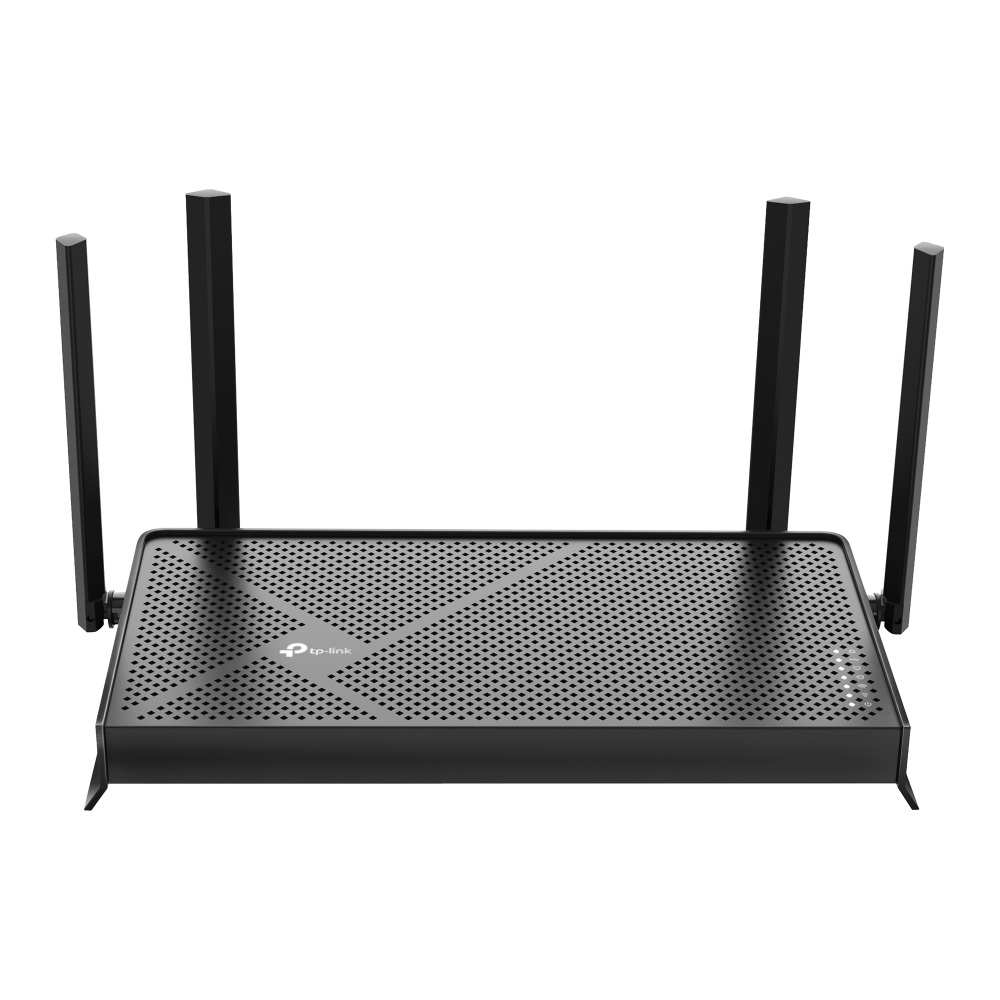

TP-Link Wireless BE Dual-Band Gigabit Router 3600Mbps Wi-Fi 7 Archer BE230

Технички спецификации

• 3.6 Gbps Dual-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads. • 2? 2.5G

Ports

1? 2.5 Gbps WAN port, 1? 2.5 Gbps LAN port and 3? 1 Gbps LAN ports offer high-speed data transmissions. •

Maximized Coverage

4? external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference. •

EasyMesh-Compatible

Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between • signals. • Easy

Setup and Use

Network management has never been easier with the Tether app. Specifications

WIRELESS WiFi Speeds

BE3600 • 5

GHz

2882 Mbps (802.11be) • 2.4

GHz

688 Mbps (802.11be)

WiFi Range

3 Bedroom Houses 4?

External Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High Dual-Band

Allocate devices to different bands for optimal performance 2?2

MU-MIMO

Simultaneously communicates with multiple

MU-MIMO clients OFDMA

Simultaneously communicates with multiple clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion 4

Streams

Connect your devices to more bandwidth

Advanced Features

Multi-Link Operation (MLO) • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT

Network Wireless Mode

• Router Mode • Access Point Mode

SECURITY Network Security

• SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway •

HomeShield Security

Real-Time IoT Protection; Malicious Site Blocker; Intrusion Prevention System; DDoS Attack Prevention; Home Network

Scanner Guest Network

• 1? 5 GHz Guest Network • 1? 2.4 GHz Guest

Network VPN Server

• OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN

Server VPN Client

• Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN

Client WiFi Encryption

• WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x)

HARDWARE Ethernet Ports

• 1? 2.5 Gbps WAN • 1? 2.5 Gbps LAN • 3? 1 Gbps

LAN USB Support

1? USB 3.0

Buttons

• Power On/Off Button • Wi-Fi On/Off Button • LED Button • WPS Button •

Reset Button Power

12 V ? 1.5 A (EU)

SOFTWARE Protocol

• IPv4 • IPv6

HomeShield EasyMesh

Compatible with

EasyMesh Parental Controls

HomeShield Parental Controls; Custom Profiles; Professional Content Filter Library; Family Time; Bedtime; Off Time; Time Rewards; Family Online Time Ranking; Pause the Internet; Weekly and Monthly

Reports WAN Type

• Dynamic IP • Static IP • PPPoE • PPTP • L2TP

Quality of Service

QoS by

Device Cloud Service

• Auto Firmware Upgrade • TP-Link ID •

DDNS NAT Forwarding

• Port Forwarding • Port Triggering • D
