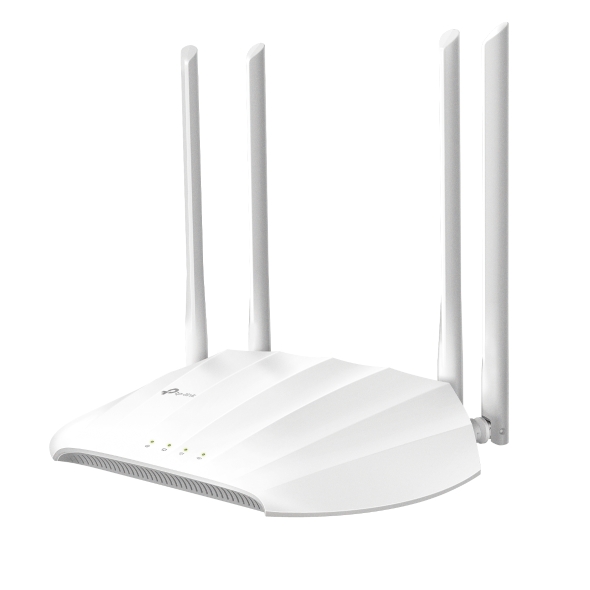

TP-Link Wireless AC TL-WA1201 AC1200 Gigabit Dual Band PoE Access Point

Технички спецификации

• AC1200 Dual-Band Wi-Fi – Fast Wi-Fi 5 speed in both 5 GHz and 2.4 GHz. • Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously. • Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs. • MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2? faster performance. • Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals. • Captive Portal – Offers a designed portal page for heightened security and marketing. Specifications

HARDWARE FEATURES Interface

1? 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)

Button

Power On/Off Button, WPS Button, Reset Button

External Power Supply

EU 12V/1A

Wireless Standards

IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz Dimensions ( W x D x H ): 8.9 ? 5.7 ? 1.5 in (225?145.5?37 mm)

Antenna

4 Fixed High Performance Antennas

WIRELESS FEATURES Frequency

2.4 GHz and 5

GHz Signal Rate

867 Mbps at 5 GHz, 300 Mbps at 2.4

GHz Reception Sensitivity

5

GHz

• 11a 6

Mbps

-95 dBm, 11a 54

Mbps

-81 dBm • 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm • 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm • 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm 2.4

GHz

• 11g 54Mbps: -78 dBm • 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm • 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm

Wireless Modes

Access Point, Range Extender, Client,

Multi-SSID Wireless Functions

Enable/Disable Wireless Radio, WMM, Wireless Statistics, DHCP Server, Access

Control Wireless Security

WPA3, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

DHCP

Server, DHCP Client List

WMM Advanced Features

Captive

Portal Transmission Power

CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)

FCC

<30dBm(2.4GHz&5GHz) OTHER Network Services

Enabled by Default

Web Server Manage and configure device through web (HTTP/HTTPS) •

Port

80/443

Protocol

TCP DHCP Server IP address assignment (DHCP) •

Port

67

Protocol

UDP App management Manage and configure device through app •

Port

20002

UDP OTHERS Certification

CE, FCC,

RoHS Package Content

• Wireless Access Point TL-WA1201 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide • PoE Power

Injector System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser Environment

•

Operating Temperature

0°C ~ 40°C(32°F ~ 104°F) •

Storage Temperature

-40°C ~ 70°C (-40°F ~ 158°F) •

Operating Humidity

10%~90% non-condensing •

Storage Humidity

5%~90% non-condensing

Protocol Support

IPv4, IPv6 https://www.tp-link.com/en/home-networking/access-point/tl-wa1201/
