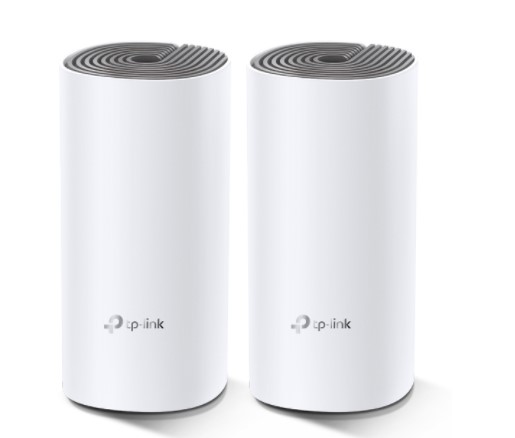

TP-Link Wireless AC MESH Deco E4 1200Mbps Dual Band Router 2-Pack

Технички спецификации

• Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all. • With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds. • A Deco E4 three-pack delivers Wi-Fi to an area of up to 4,000 square feet (EU version). And if that’s not enough, simply add more Decos to the network anytime to increase coverage. • Deco E4 provides fast and stable connections with speeds of up to 1167 Mbps and works with the major internet service provider (ISP) and modem. • Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices. • Parental Controls limits online time and block inappropriate websites according to unique profiles created for each family member. • Setup is easier than ever with the Deco app there to walk you through every step. Specifications WIRELESS

Standards and Protocols

Wi-Fi 5 • IEEE 802.11ac/n/a 5 GHz • IEEE 802.11n/b/g 2.4

GHz WiFi Speeds

AC1200 • 5

GHz

867 Mbps (802.11ac) • 2.4

GHz

300 Mbps (802.11n)

WiFi Range

3-4 Bedroom Houses (3-pack) • TP-Link Mesh Technology • Optional Ethernet backhaul work together to link Deco units to provide seamless coverage • 2? Antennas (Internal) • Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity

Medium • Dual-Band • Distribute devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Working Modes

Router Mode; Access Point Mode

SECURITY Network Security

SPI Firewall; Access

Control Guest Network

• 1? 5 GHz Guest Network • 1? 2.4 GHz Guest

Network WiFi Encryption

WPA-Personal; WPA2-Personal

HARDWARE Ethernet Ports

2? 10/100 Mbps Ports; *Per

Deco Unit Buttons

Reset

Button SOFTWARE Protocols

IPv4; IPv6

Parental Controls

URL Filtering; Time

Controls WAN Types

Dynamic IP; Static IP; PPPoE; PPTP; L2TP

Quality of Service

QoS by

Device Cloud Service

OTA Firmware Upgrade; TP-Link ID;

DDNS NAT Forwarding

Port Forwarding;

UPnP IPTV

IGMP Proxy; IGMP Snooping; Bridge;

Tag VLAN DHCP

Address Reservation; DHCP Client List;

TP-Link Management Features

Deco App OTHER Network Services

Enabled by Default

Web Server Manage and configure device through web (HTTP/HTTPS) •

Port

80/443

Protocol

TCP DNS DNS •

Port

53

Protocol

TCP & UDP DHCP Server IP address assignment (DHCP) •

Port

67

Protocol

UDP App management Manage and configure device through app •

Port

22

Protocol

TCP •

Port

20001

Protocol

TCP •

Port

30001

Protocol

TCP •

Port

20002

Protocol

UDP TEST DATA

WiFi Transmission Power

CE: • <20 dBm (2.4 GHz) • <23 dBm (5 GHz)

FCC

• <30 dBm PHYSICAL Dimensions (W?D?H): 3.6 ? 3.6 ? 7.5 in (90.7 ? 90.7 ? 190 mm) Pac
