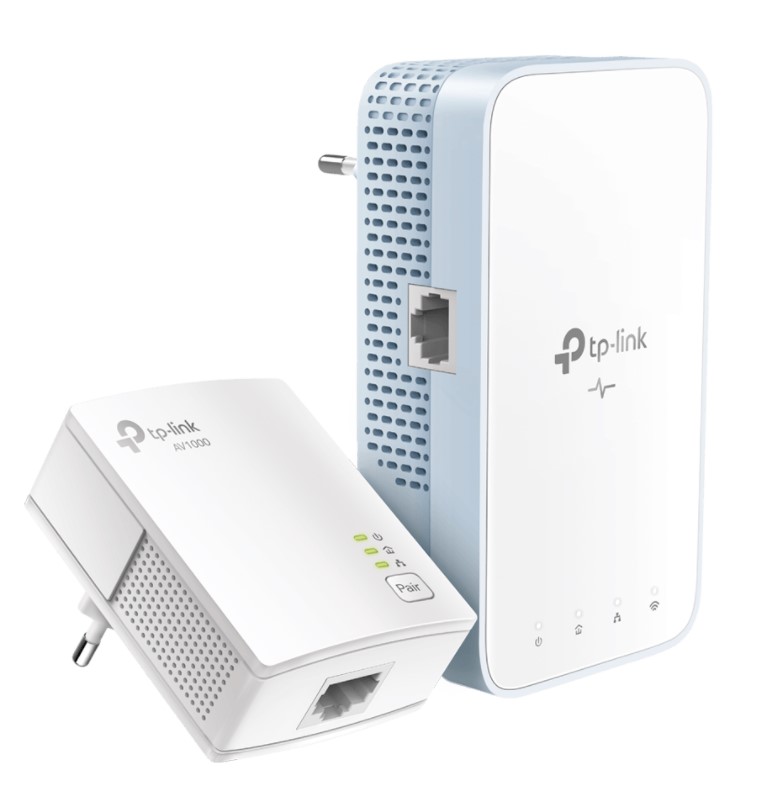

TP-Link Powerline AV Adapter WPA7517 WiFi AC 750 Gigabit KIT

Технички спецификации

• Homeplug AV2

Standard Compliant

Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters • Dual Band 802.11ac

WiFi

AC1200 dual band Wi-Fi (867Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home •

Wi-Fi Auto-Sync

Simply copy your router's Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move •

Gigabit Ethernet Port

Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS • Plug,

Pair and Play

Quickly set up a secured Powerline network •

OneMeshTM

Works with your OneMeshTM router to form a unified mesh network for seamless streaming while moving around your home HARDWARE

FEATURES Transmission Speeds

•

Powerline

Up to 1000 Mbps •

Ethernet

10/100/1000

Mbps Transmission Distance

Up to 300 meters/1000 feet over existing electrical wiring

Standards and Protocols

• HomePlug AV2 • IEEE 1901 • IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.11b/g/n (2.4 GHz) • IEEE 802.11a/n/ac (5 GHz)

Compatibility

Compatible with all HomePlug AV & AV2 standard powerline adapters

Plug Type

EU

Interface

• TL-WPA7517: 1? Gigabit Ethernet Port • TL-PA7017: 1? Gigabit

Ethernet Port Button

• Pair • LED On/O? • Wi-Fi Clone • Reset Max.

Power Consumption

• TL-WPA7517:

Maximum

11W,

Typical

6.5W • TL-PA7017:

Maximum

2.9W,

Typical

2.6W

LED

• Power • Powerline • Ethernet • Wi-Fi (2.4 GHz) • Wi-Fi (5 GHz) WIRELESS

FEATURES Wireless Standards

• TL-WPA7517: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz • TL-PA7017:

N/A Frequency

• TL-WPA7517: 2.4 GHz and 5 GHz • TL-PA7017:

N/A Signal Rate

• TL-WPA7517: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz • TL-PA7017: N/A SOFTWARE

FEATURES Mesh Technology

OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Security

•

Powerline

128-bit AES Encryption •

Wireless

WPA-PSK / WPA2-PSK, WEP

Encrptions Management Features

TP-Link tpPLC App, or download new tpPLC Utility on PCs.

Modulation Technology

OFDM (PLC) OTHER Network Services

Enabled by Default

Web Server Manage and configure device through web (HTTP/HTTPS) •

Port

80/443

Protocol

TCP DHCP Server IP address assignment (DHCP) •

Port

67

Protocol

UDP Onemesh management Onemesh Configuration (Synchronization & Communication) •

Port

20001

Protocol

TCP •

Port

20002

Protocol

UDP App management Manage and configure device through app •

Port

1040

Protocol

UDP PHYSICAL Dimensions (W?D?H): • TL-WPA7517: 2.7 ? 1.4 ? 4.9 in (69.5 ? 35 ? 124.1 mm) • TL-PA7017: 2.0 ? 1.1 ? 2.6 in (52 ? 28.5 ? 65 mm)

Package Content

• AV1000

Powerline Wi-Fi Kit

TL-WPA7517 & TL-PA7017 • 2? Ethernet Cables • 1? Qu
