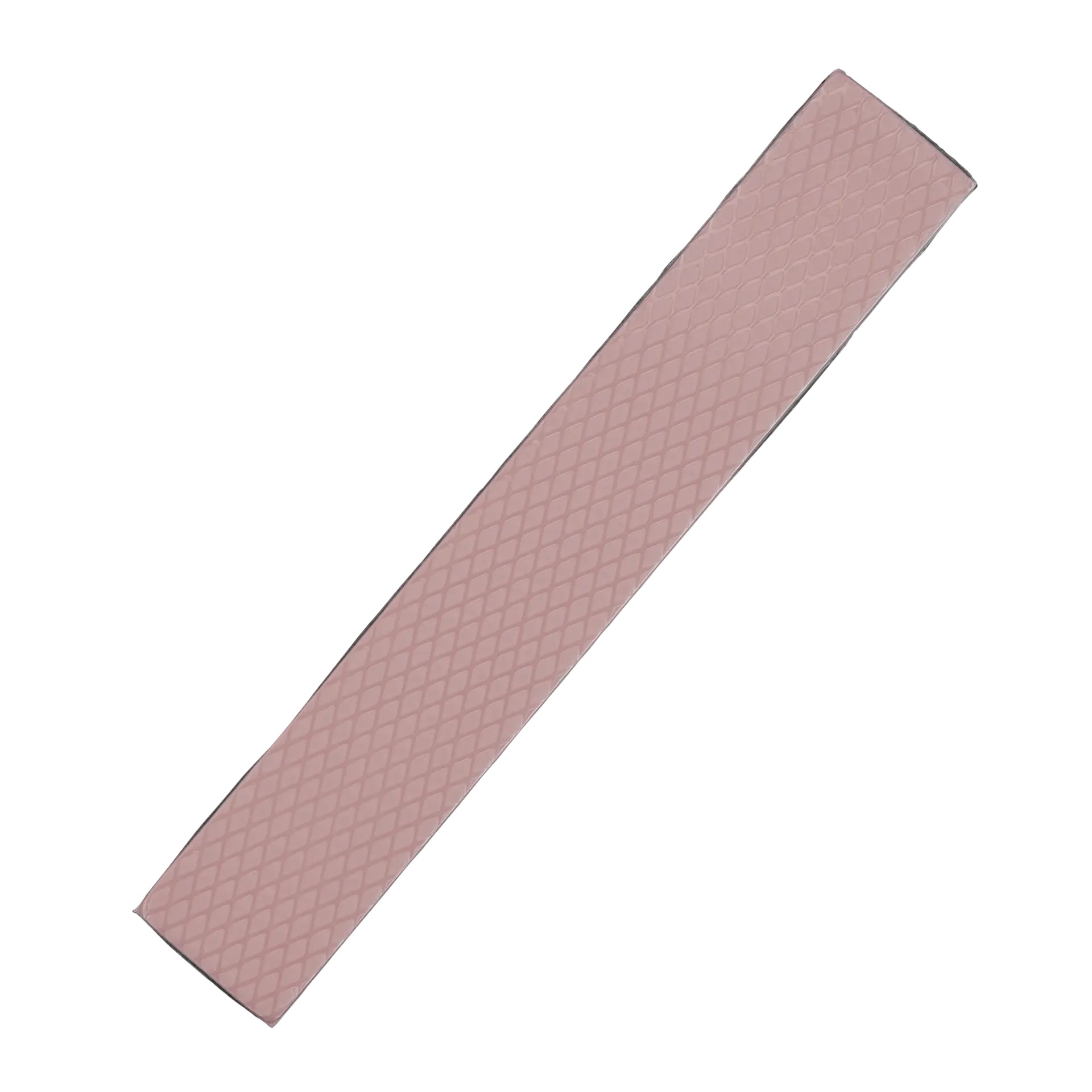

Thermal Pad Minus Pad 8 Thermal Grizzly - 120x20x1.0 mm

Технички спецификации

PRODUCT INFORMATION "MINUS PAD 8" The high performance thermal pads of the Thermal Grizzly Minus Pad series consist of a very elastic and flexible surface area with very high thermal conductivity, compensating for even the smallest of gaps between components. Available in a variety of different sizes and thicknesses. PROPERTIES • High thermal conductivity • High compressibility • Electrical insulation FLEXIBLE, EFFICIENT AND RELIABLE The easy to process and flexible minus pads are made up of different constituents, based on a ceramic silicon formula complex and nano aluminum oxide. Thus, the pads ensure a constant, optimal heat transfer. The lightest of touches is enough to attach them optimally. All pads are ecofriendly and RoHS-compliant. The minus pads 8 are available in the sizes of 30x30mm, 120x20mm, 100x100mm as well as in the thicknesses of 0,5mm, 1mm, 1,5mm, 2mm, 3mm.

TECHNICAL DETAILS Color

pink

Degree of hardness

Shore 00-60

Electrically insulating

Yes(8KV/mm ASTM D149)

Flammability

V-0

Operating temperature

-100°C to +250°C

Size

120 x 20 mm

Thickness

1 mm https://www.thermal-grizzly.com/en/minus-pad-8/s-tg-mp8-120-20-10-1r
