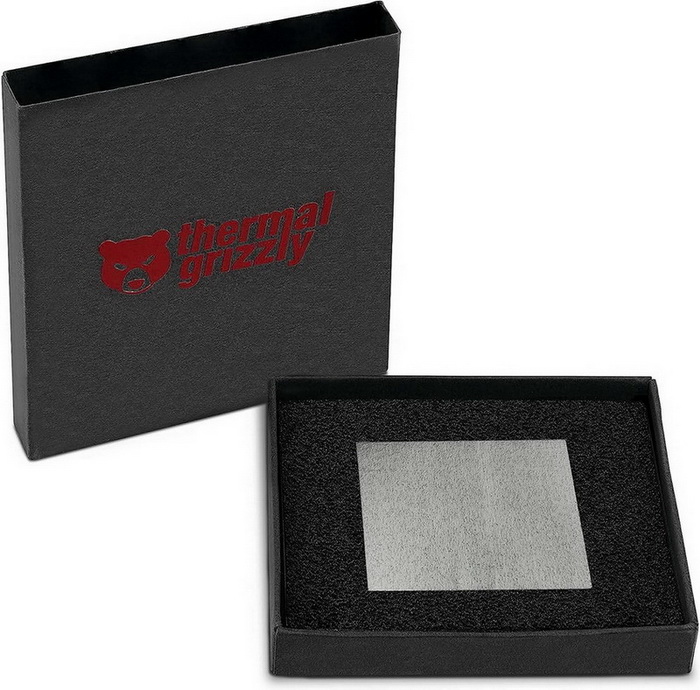

Thermal Pad KryoSheet Thermal Grizzly 33x33mm

Технички спецификации

PRODUCT INFORMATION "KRYOSHEET" The graphene thermal sheets of the Thermal Grizzly KryoSheet series can be used excellently as an alternative to thermal pastes from the upper performance segment. Similar to the Carbonaut sheets, they have an adaptable surface with very high thermal conductivity. Compared to Carbonaut sheets, KryoSheet offers significantly higher thermal conductivity as a high-end product. This increased thermal conductivity is not only due to the choice of material, but also due to the innovative manufacturing process. KryoSheet does not contain any liquid components and is therefore not subject to ordinary aging as is the case with traditional thermal paste. Drying out is not possible. PROPERTIES • Outstanding thermal conductivity • Easy to use • Consistently high performance • Extreme durability •

Attention

Electrically conductive! Follow the instructions! OUTSTANDING AND CONSISTENT THERMAL CONDUCTIVITY The graphene thermal sheets of the Thermal Grizzly KryoSheet series can be used excellently as an alternative to thermal pastes from the upper performance segment. Similar to the Carbonaut sheets, they have an adaptable surface with very high thermal conductivity. Compared to Carbonaut sheets, KryoSheet offers significantly higher thermal conductivity as a high-end product. This increased thermal conductivity is not only due to the choice of material, but also due to the innovative manufacturing process. KryoSheet does not contain any liquid components and is therefore not subject to ordinary aging as is the case with traditional thermal paste. Drying out is not possible. NOTE ON USE WITH HIGH PERFORMANCE HEATSPREADERS AND DIRECT-DIE COOLERS When thermal sheets such as Carbonaut and KryoSheet are used between the CPU die and the HPHS, insufficient mounting pressure may result in reduced heat dissipation. For Direct-Die coolers and the HPHS, the use of liquid metal between the CPU die and the cooler or HPHS is explicitly recommended KRYOSHEET IS AVAILABLE IN MULTIPLE SIZES The KryoSheet 33x33 mm is compatible with:

Nvidia GPUs

• RTX 5080 • RTX 2080 ti • Titan

RTX AMD CPUs

• Socket AM5

NOTE

Multiple use of KryoSheet is not recommended! When disassembling the cooler and handling the KryoSheet after use, micro-cracks may occur in the structure of the graphene pads, which can affect performance.

TECHNICAL DETAILS Color

anthracite

Electrically insulating

No

Operating temperature

-250°C to +150°C

Size

33 x 33 mm

Thickness

0.2 mm https://www.thermal-grizzly.com/en/kryosheet/s-tg-ks-33-33 https://www.youtube.com/watch?v=OK_IRf4CJCw
