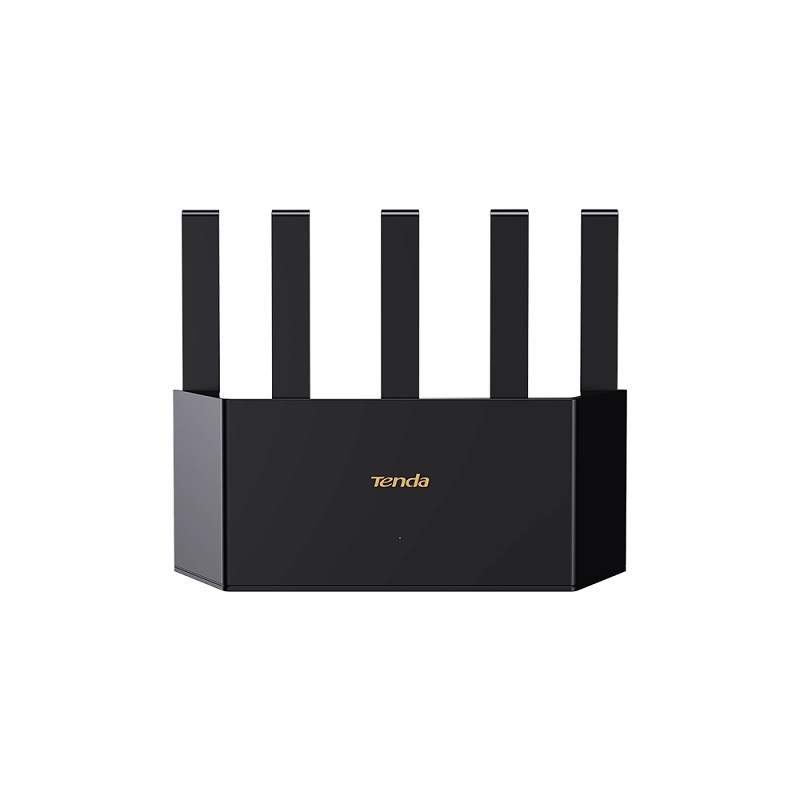

Tenda Wireless AX Smart Dual-Band Gigabit Router 3000Mbps WiFi6 TX12L PRO

Технички спецификации

TX12L Pro is a dual-band Gigabit Wi-Fi 6 wireless router designed for users who pursue performance experience. Both its dual-bands support Wi-Fi 6 (802.11ax) technology and the concurrent rate is up to 2976Mbps (5GHz:2402Mbps, 2.4GHz: 574Mbps). TX12L Pro is equipped with a 12nm process dual-core 1.3GHz CPU to ensure a stable and smooth network environment; supports Wi-Fi+, which can easily solve the problem of stable Wi-Fi coverage in very large homes; equipped with 5 built-in high-power FEMs , Wi-Fi has stronger wall penetration capabilities and longer transmission distances; it uses OFDMA+MU-MIMO technology to allow more devices to access the Internet at the same time, significantly improving transmission efficiency and significantly reducing latency. -Standard&Protocol - IEEE802.3, IEEE802.3u, IEEE802.3ab -Interfaces: 1*10/100/1000Mbps WAN port 3*10/100/1000Mbps LAN ports -Antenna - 5*external antennas -Button - 1*WPS/Reset button -Power: Input:AC 100-240V~50/60Hz

Output

DC 12V?1A -LED Indicator - 1* LED -Dimension - 244*56*200mm(L*W*H) -Wireless

Standard

IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4

GHz -Data Rate

5

GHz

2402 Mbps (802.11ax, HE160) 2.4

GHz

574 Mbps (802.11ax) -Frequency: CE: 2.4G: 2412-2472MHz(CH1-CH13) 5G: 5150-5350MHz(CH36-CH64)

FCC

2.4G: 2412-2462MHz(CH1-CH11) 5G: 5150-5350MHz(CH36-CH64) 5725-5850MHz(CH149-CH165) -Transmission

Power

CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz)

FCC

<30 dBm (2.4 GHz) <30 dBm (5 GHz) -Basic

Features

SSID broadcasting and hiding MU-MIMO Beamforming signal directional transmission technology 160MHz OFDMA 1024-QAM -Wireless

Security

WPA2-PSK WPA3-SAE/WPA2-PSK -Wireless

Security

Enable/Disable WPS(WiFi Protected Set-up) fast encryption -Internet

Connection Type

PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia) Unify,Maxis,Maxis-special,Celcom,Digi -Network Protocol - IPv4&IPv6 -Operating

Mode

Router Mode AP Mode Universal Repeater Mode(Client+AP,WISP) -Parental

Control

Client Filter URL Filter

Time Limit -DHCP

DHCP Server DHCP Client List DHCP Static IP Address Reservation and Allocation -Virtual Server - Port Forwarding, DMZ Host,

UPnP -Firewall

ICMP Flood Attack Defense TCP Flood Attack Defense UDP Flood Attack Defense Block Ping From WAN -DDNS - DynDNS, no-ip, oray, 88ip -VPN: IPSec Transparent Transmission PPTP Transparent Transmission L2TP Transparent Transmission PPTP VPN Server PPTP VPN Client L2TP VPN

Client -Special Features

Wi-Fi+(Mesh System) Smart diagnosis IPTV IPv6 Smart LED on/off -Other

Function

Support App and web management Bandwidth Control Guest Network MAC Address Clone Supports black list and white list Unify 2.4 GHz & 5 GHz Static Routing Remote Web Management Backup & Restore configurations Firmware upgrade online -Temperature: Operating Temperature : 0?~40? Storage Temperature : -40C ~70? -Humidity: Operating Humidity : 10 %~90% R
