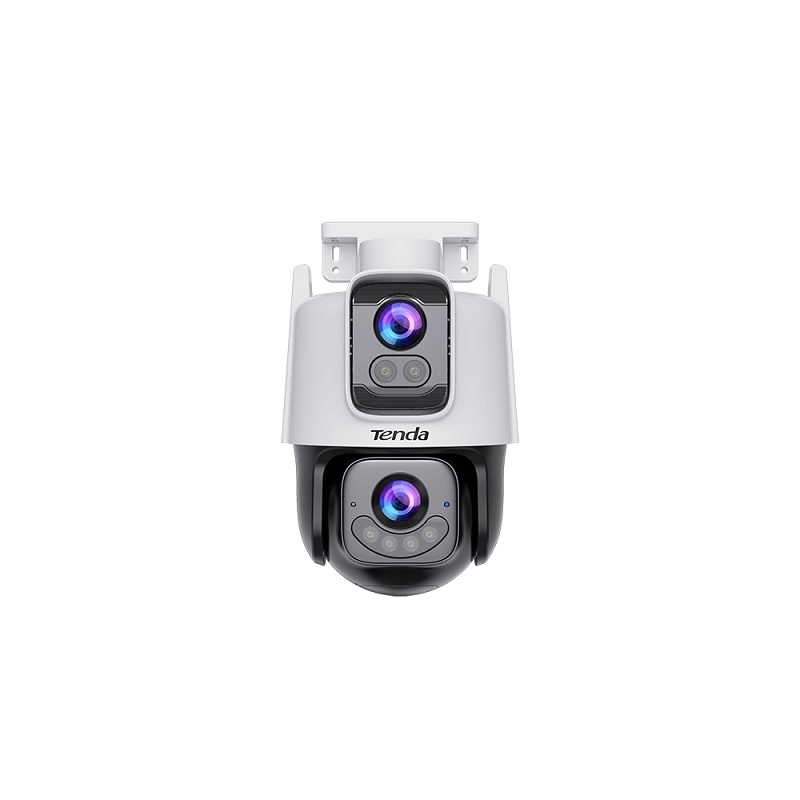

Tenda Wireless AX IP Network 6MP Dual Lens Outdoor Camera Day/Night 2-Way audio Pan/Tilt CH9 WCA

Технички спецификации

The dual-lens linkage outdoor Wi-Fi pan/tilt camera CH9-WCA, is a high-performance outdoor security camera that integrates 6MP resolution video(3MP+3MP), 360° visual coverage, full-color night vision, full-duplex two-way audio, human detection, vehicle detection, line crossing detection, intrusion detection, dual-lens smart linkage, sound and light alarm functions. The product is mostly used for outdoor protect scenarios such as courtyard, farms and shops, etc. The users can access the video via wireless or wired connection to the Internet. -Image Sensor - 1/3 Progressive Scan CMOS sensor -Day and Night - ICR type -Bracket Angle Adjustment - Pan:0°to 260° -Focal

Length

Fixed Lens:4mm PT Lens:6mm -Aperture: Fixed Lens:F1.6 PT Lens:F1.6 -FOV: Fixed Lens:Horizontal

FOV

82.3°,

Vertical FOV

44.7°,

Diagonal FOV

97.4° PT Lens:Horizontal

FOV

51.8°,

Vertical FOV

28.2°,

Diagonal FOV

60.4° -Supplementary Light - 6 IR Lights, 6 Spotlights -Supplementary Light Distance - Up to 30 m/100 ft (depending on environment) -IR Wavelength - 850nm -Night Vision Mode - Smart Mode, Full Color Mode, Black & White Mode -Video

Encoding Format

Fixed Lens:H.265, H.264 PT Lens:H.265, H.264 -Main

Stream Resolution

Fixed Lens:2304 ?1296, 1920 ? 1080, 1280 ? 720 PT Lens:2304 ?1296, 1920 ? 1080, 1280 ? 720 -Sub

Stream Resolution

Fixed Lens:640 ? 360 PT Lens:640 ? 360 -Frame

Rate

Fixed Lens:1-25fps (2304 ? 1296 1-18fps), Default 18fps PT Lens:1-25fps (2304 ? 1296 1-18fps), Default 18fps -Bit

Rate

Fixed Lens:512kbps -- 4096kbps PT Lens:512kbps -- 4096kbps -Bit

Rate Control

Fixed Lens:CBR,VBR PT Lens:CBR,VBR -Audio Encoding Format - G.711A, G.711U, AAC -Audio Sampling Rate - 8 kHz -Audio Communication - Two-way Audio, Voice Input -Image Enhancement - DWDR, BLC, HLC, 3D DNR -Privacy Mask - 4 Areas -Ethernet Port - 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port -ONVIF - Support -Protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets -Web Browser - Plug-in free live view: Chrome, Edge, Opera -Pan Movement Range - 0°--355° -Tilt Movement Range - 0°--90° -Preset - 6 -Patrol - Panoramic Patrol, Preset Patrol -Antenna - Internal antenna -Wireless Standard - IEEE 802.11 b/g/n/ax -Transmission Rate - Up to 287Mbps -Channel Width - 20/40 MHz -Modulation - DSSS/OFDM/OFDMA -Frequency Band - 2.4GHz: 2412MHz-2472MHz(CH1-CH13) -Transmit Power - 2.4GHz: <0.1W(EIRP) -Security - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3-SAE -Smart Detection - Both fixed lens and PT lens are supported motion detection, human detection, vehicle detection, line crossing Detection, intrusion detection -Smart Linkage - Sound&light Alert, Dual-lens Linkage Tracking -DIY Audio - 3 Customized Audios -Audio Input - Built-in MIC -Audio Output - Built-in Speaker -Storage - Built-in Micro SD Card Slot, Up to 512 GB -Reset Button - Support -LED Indicator - Dual Color(red & blue) LED Indicator -Po
