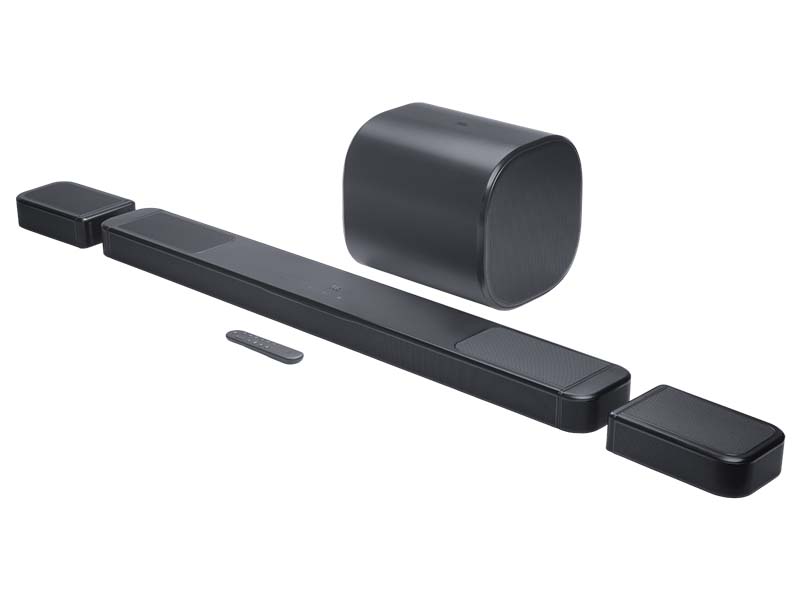

Soundbar JBL BAR 1300MK2 Dolby Atmos/DTS:X/MultiBeam 3.0 Surround Sound 1570W w/ Wireless Subwoofer

Технички спецификации

You can get a cinematic sound experience in seconds. One that fills your entire room with true Dolby Atmos® and DTS:X for vivid, immersive 3D spatial audio that you can customize to fit any moment. Just pick up the detachable wireless speakers from either end of the JBL BAR 1300MK2 soundbar and put them behind where you're sitting. Far apart for family movie night with the new superhero hit or closer for a cozy romantic playlist—chosen from hundreds of available streaming services. Feel deep, punchy bass from a mighty 12" subwoofer and enjoy the widest, most cinematic soundstage with MultiBeam™ 3.0.

General Specifications Model

BAR 1300XMK2 (soundbar unit) BAR 1300XMK2 SURROUND (detachable speaker) BAR 1300XMK2 SUB (subwoofer unit)

Sound system

11.1.4 channel

Power supply

100 - 240V AC, ~ 50/60Hz Total speaker power output* (Max. @THD 1%): 1570W Soundbar output power** (Max. @THD 1%): 950W Surround speaker output power*** (Max. @THD 1%): 2x 160W Subwoofer output power**** (Max. @THD 1%): 300W

Soundbar transducer

8x (50x75mm) racetrack drivers, 7x 1" (25mm) tweeters, 4x 3" (75mm) up-firing full-range drivers

Surround speaker transducer

2x (50x90mm) racetrack drivers, 1x 2" (50mm) full-range drivers, 1x 3" (75mm) up-firing full-range drivers

Subwoofer transducer

12" (311mm)

Networked standby power

< 2 W

Operating temperature

0°C - 45°C

Lithium battery

7.2V, 4722mAh Detachable surround speaker playtime: up to 10 hours (may vary according to content type and volume level) Audio

Specifications Frequency response

33Hz - 20kHz (-6dB)

Audio inputs

Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.) Dimensions Total soundbar dimensions (W x H x D): 1404 x 58 x 136 mm Soundbar dimensions (W x H x D): 1030 x 58 x 136 mm Detachable surround speaker dimensions (each) (W x H x D): 202 x 58 x 136mm Subwoofer dimensions (W x H x D): 380 x 482.5 x 380mm

Soundbar weight

5.93kg Detachable surround speaker weight (each): 1.3 kg

Subwoofer weight

15.4kg Packaging dimensions (W x H x D): 1124 x 463 x 565 mm

Packaging weight

29.3 kg * RMS @THD 1% 475W *** RMS @THD 1%: 785W ** RMS @THD 1% Control and Connection

Specifications USB port

Type A

USB rating

5V DC, 0.5A

Supporting file formats

mp3 MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 MP3 sampling rate: 16 - 48 kHz MP3 bitrate: 80 - 320 kbps

Bluetooth version

Main Bar - v5.3, Detachable surround speaker - v5.4 Main bar

Bluetooth profile

A2DP v1.4, AVRCP v1.6, A2DP v1.3, AVRCP v1.5 Detachable surround speaker Bluetooth profile Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz

Bluetooth transmitter power

<15 dBm (EIRP)

Wi-Fi network

IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) 2.4G Wi-Fi transmitter frequency range: 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels) 2.4G

Wi-Fi transmitter power

< 20 dBm (EIRP) 5G Wi-Fi transmitter
