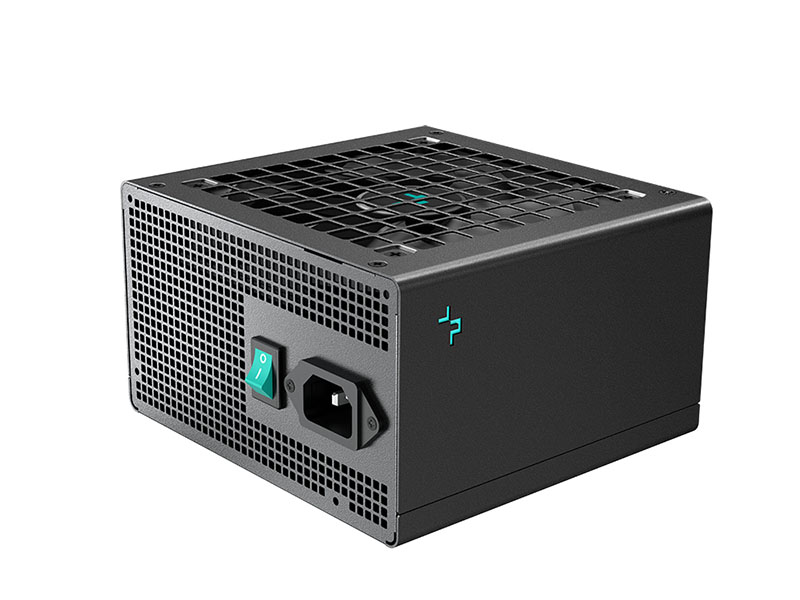

PSU 850W Deepcool PN850M 80Plus Gold, Full Modular, PCIe Gen 5.1 Ready, 12V-2x6 12VHPWR

Технички спецификации

The DeepCool PN850M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN850M provides stable power for a wide range of modern high-power components. GRACEFUL GOLD 80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics. PCI-E 5.1 POWER Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN850M provides up to 600W for modern GPUs. SLEEVED CABLES The PN850M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

Technical Spec Type

ATX12V V3.1

Product Dimensions

150?140?86mm (W x L x H)

Efficiency certification

80Plus

Gold Fan Size

120mm

Fan Bearing

FDB (Fluid Dynamic Bearing)

Topology

Active PFC + Full Bridge SRC LLC + DC to DC

Capacitors

Japanese Bulk Capacitor

Power Good Signal

100-150ms

Hold Up Time

?16ms(80% Load)

Efficiency

?90% Under Typical Load(50% Loading)

OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO Operation Temperature

0 - 40?

CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH Erp Regulation

ErP 2014

Environment Protection

WEEE/?? RoHS/Triman/P65

MTBF

100,000 Hours https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PN850M-ATX3.1-Modular-Power-Supply/2023/17874.shtml
