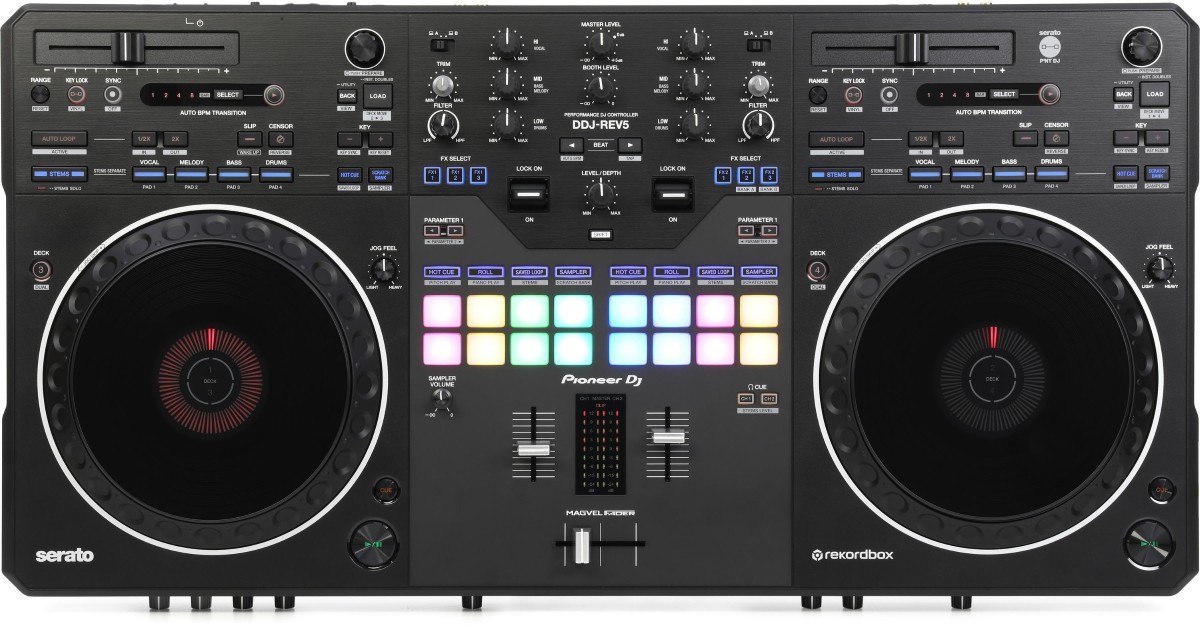

Pioneer DJ DDJ-REV5 Scratch-style 2-channel DJ Controller

Технички спецификации

GENERAL Product type

DJ controller

Style

Scratch-style, open-format / Hip-Hop

Number of channels

2

Compatible software

Serato DJ Pro, rekordbox (plug-and-play, no license required)

Included

Voucher for Serato Pitch 'n Time DJ

Expansion Pack Color

Black CONTROLS &

PERFORMANCE Jog wheels

2? large, with On Jog Display (playhead position indicator)

Jog Feel knob

Adjustable jog wheel "weight"

Crossfader

MAGVEL FADER (magnetic, precise for scratching)

Tempo sliders

2? long, horizontally placed above the decks

Performance Pads

16? (8 per deck), back-lit, rubber

Pad modes

Hot Cue, Pad FX, Beat Jump, Sampler, Saved Loop, Hot Cue Roll, Combo Pad Mode, Piano

Play Stems control

Dedicated buttons (Vocal/Melody/Bass/Drums in Serato; Vocal/Drums/Inst in rekordbox)

Stems functions

Mute/Solo, Separate, Level

Auto BPM Transition

Yes (selectable number of bars for transition)

Lever FX

Yes (ON / LOCK ON positions)

FILTER knob

Yes, per channel KEY +/- buttons:

Yes EQ

3-band (with STEMS LEVEL mode) INPUTS &

OUTPUTS Master out

1? XLR (balanced), 1?

RCA Booth out

1? TRS (1/4")

Headphones

1? 1/4" TRS + 1? 3.5 mm mini jack

Microphone

1? XLR/TRS combo + 1? 1/4"

TRS AUX in

1? RCA (line-level)

USB

2? USB Type-C (for PC/Mac), with switch for quick DJ changeover DESIGN &

PHYSICAL CHARACTERISTICS Width

736 mm

Height

73.4 mm

Depth

377.2 mm

Weight

6.2 kg

Layout

PLX + DJM-S inspired (decks + mixer section with pads and levers) CONNECTIVITY &

COMPATIBILITY Connection

USB Type-C ? 2

Compatible OS

Windows, macOS

Built-in Firmware

Update Manager with automatic notifications IN THE BOX DDJ-REV5 DJ controller USB cable AC adapter Warranty card Quick Start Guide
