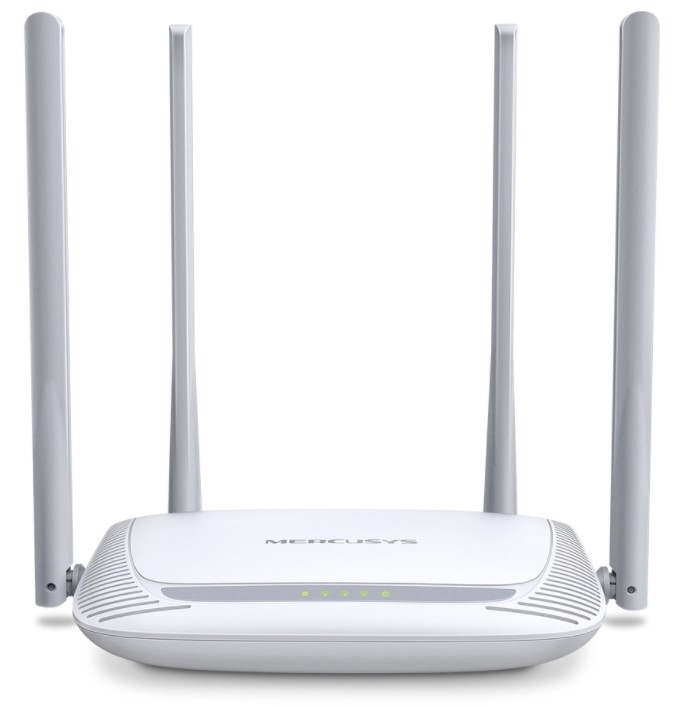

Mercusys Wireless N Router 300Mbps MW325R

Технички спецификации

• Great Coverage – four 5dBi antennas provide wide wireless coverage • Enhanced Signal – high gain antennas dramatically increase wireless signal strength, size and stability • 300Mbps Wireless Speed - ideal for HD streaming, online gaming, and large file downloads • Easy Installation - intuitive webpage guides you through the setup process in minutes

Wireless Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.4 - 2.5GHz

WiFi Speeds

• 11n: Up to 300Mbps (Dynamic) • 11g: Up to 54Mbps (Dynamic) • 11b: Up to 11Mbps (Dynamic)

Reception Sensitivity

• 270M: -70dBm@10% PER • 130M: -72dBm@10% PER • 54M: -74dBm@10% PER • 11M: -87dBm@10% PER • 6M: -92dBm@10% PER • 1M: -94dBm@10%

PER Transmission Power

<20dBm

Wireless Security

WPA-PSK / WPA2-PSK

Wireless Functions

Enable/Disable Wireless Radio, WDS

Bridge Hardware Dimensions

167 x 118 x 33 mm

Interfaces

3 10/100Mbps LAN ports; 1 10/100Mbps

WAN port Button

Reset button

External Power Supply

5VDC/0.6A(V3.0); 9VDC/0.6A(V3.30)

Antenna Type

4 x 5dBi fixed omni directional antennas

Software WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access control; Local management; Remote management

Port Forwarding

Virtual server, UPnP,

Oray Firewall Security

IP and MAC address binding

Protocols

IPv4; IPv6

Guest Network

2.4GHz guest network

DHCP

Server, DHCP Client

List Others Certifications

CE,

ROHS Package Contents

• 300Mbps Enhanced Wireless N Router MW325R • Power adapter • Quick installation guide • RJ45

Ethernet cable Environment

•

Operating temperature

0?C ~ 40?C (32?F ~ 104?F) •

Storage temperature

-40?C ~ 70?C (-40?F ~ 158?F) •

Operating humidity

10% ~ 90%, non-condensing •

Storage humidity

5% ~ 90%, non-condensing https://www.mercusys.com/en/product/details/mw325r/ https://www.youtube.com/watch?v=konBZQizmec https://static.mercusys.com/product-image/MW325R_UN_overview_02_large20221118004139.jpg https://static.mercusys.com/product-image/MW325R_UN_overview_04_large20221118004103.jpg https://static.mercusys.com/product-image/MW325R_UN_overview_03_large20221118004123.jpg
