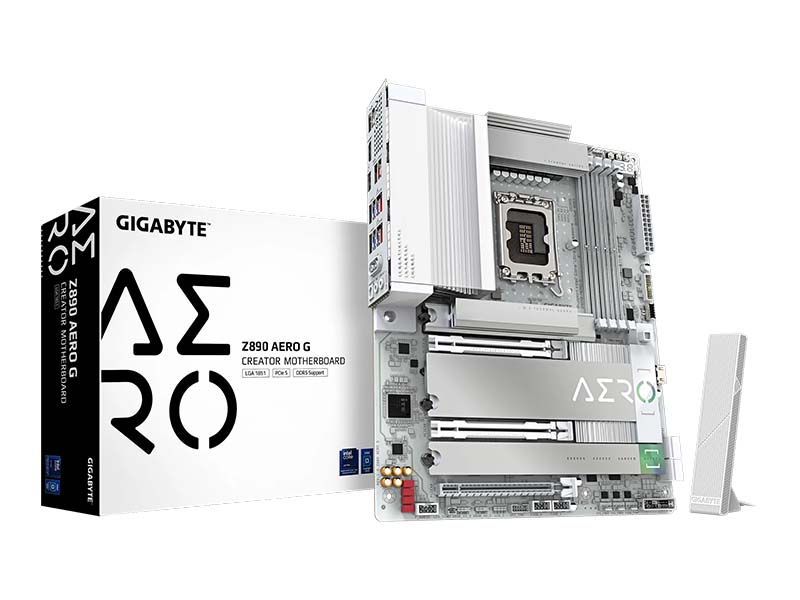

MB Gigabyte Z890 AERO G WIFI7 LGA1851 DDR5 9200MHz OC/5xM.2/BT 5.4/2x2.5Gb/PCIe5.0/HDMI/Thunderbolt4

Технички спецификации

CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with

CPU Chipset

Intel® Z890

Express Chipset Memory

Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity of system memory Dual channel memory architecture Onboard Graphics Integrated Graphics Processor-Intel® HD

Graphics support

- 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs - 1 x HDMI port, maximum resolution of 4096x2160@60 Hz - 1 x Front HDMI port, maximum resolution of 1920x1080@30 Hz Support for up to triple-display at the same time

Audio

Realtek® ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for

S/PDIF Out LAN

2 x Intel® 2.5GbE LAN chips (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel® Wi-Fi 7 BE202 (BE200NGW M) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard

Expansion Slots CPU

- 1 x PCI Express x16 slot, PCIe 5.0 and running at x16 (PCIEX16) - 1 x PCI Express x16 slot, PCIe 5.0 and running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset

- 1 x PCI Express x16 slot, PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface

CPU:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD/SATA storage devices

USB CPU

- 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel

Chipset

- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x sy
