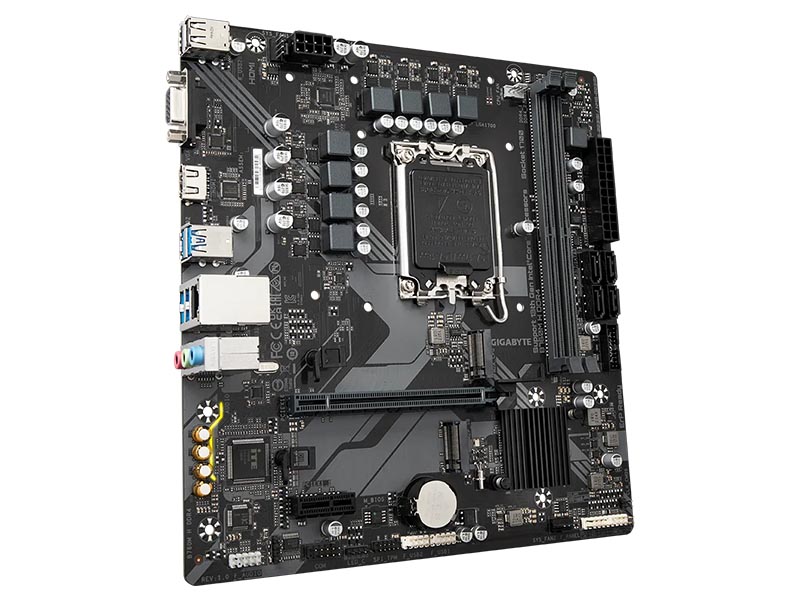

MB Gigabyte B760M H LGA1700 DDR4 5333MHz OC/SATA3/2xM.2/USB3.2/Gbit LAN/PCIe 4.0/VGA/HDMI

Технички спецификации

CPU

LGA1700 socket: Support for the 13th and 12thGeneration Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with

CPU Chipset

Intel® B760

Express Chipset Memory

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture

Onboard Graphics

Integrated Graphics Processor-Intel® HD

Graphics support

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.

Audio

Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for

S/PDIF Out LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots CPU

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface CPU

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB Chipset

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header

Back Panel Connectors

2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks

I/O Controller

iTE® I/O Controller

Chip Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 23.0cm x 21.5cm
