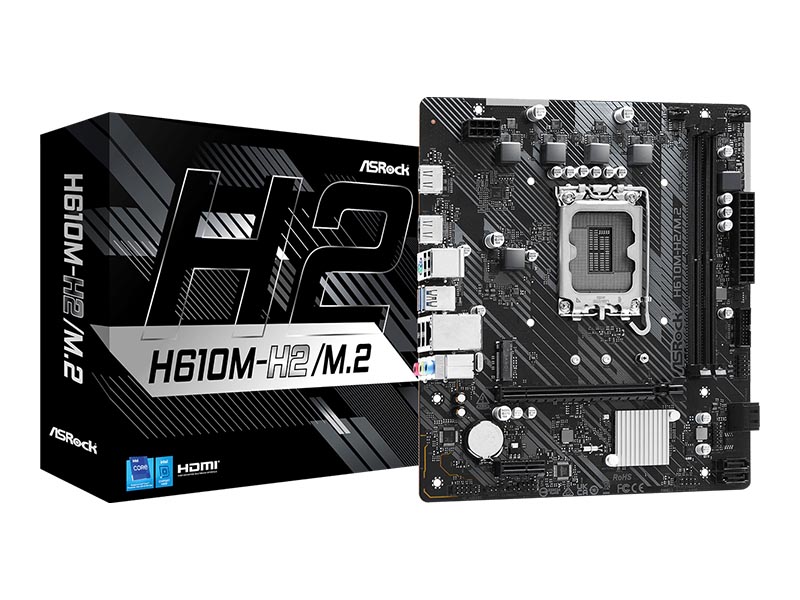

MB ASRock H610M-H2/M.2 DDR4 LGA1700 3200MHz SATA3 M.2 USB3.2 GBit LAN PCIe 4.0 2xHDMI

Технички спецификации

Unique Feature Rock-Solid Durability - 3+1+1 Power Phase EZ Update - ASRock Auto Driver Installer CPU - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology Chipset - Intel® H610 Memory - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 2.0 BIOS - 128Mb AMI UEFI Legal BIOS with GUI support Graphics - Intel® Xe Graphics Architecture (Gen 12) - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN - Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H

Slots CPU

- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset

- 1 x PCIe 3.0 x1 Slot (PCIE2)* * Supports NVMe SSD as boot disks

Storage Chipset

- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks USB - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front) * All USB ports support ESD Protection Connector - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port - 2 x HDMI Ports - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD

Audio Jacks

Line in / Front Speaker / Microphone Software and UEFI Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Accessories - 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket Form Factor - Micro

ATX Form Factor

8.66-in x 7.6-in, 22.0 cm x 19.3 cm OS - Microsoft Windows® 10 64-bit / 11 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
