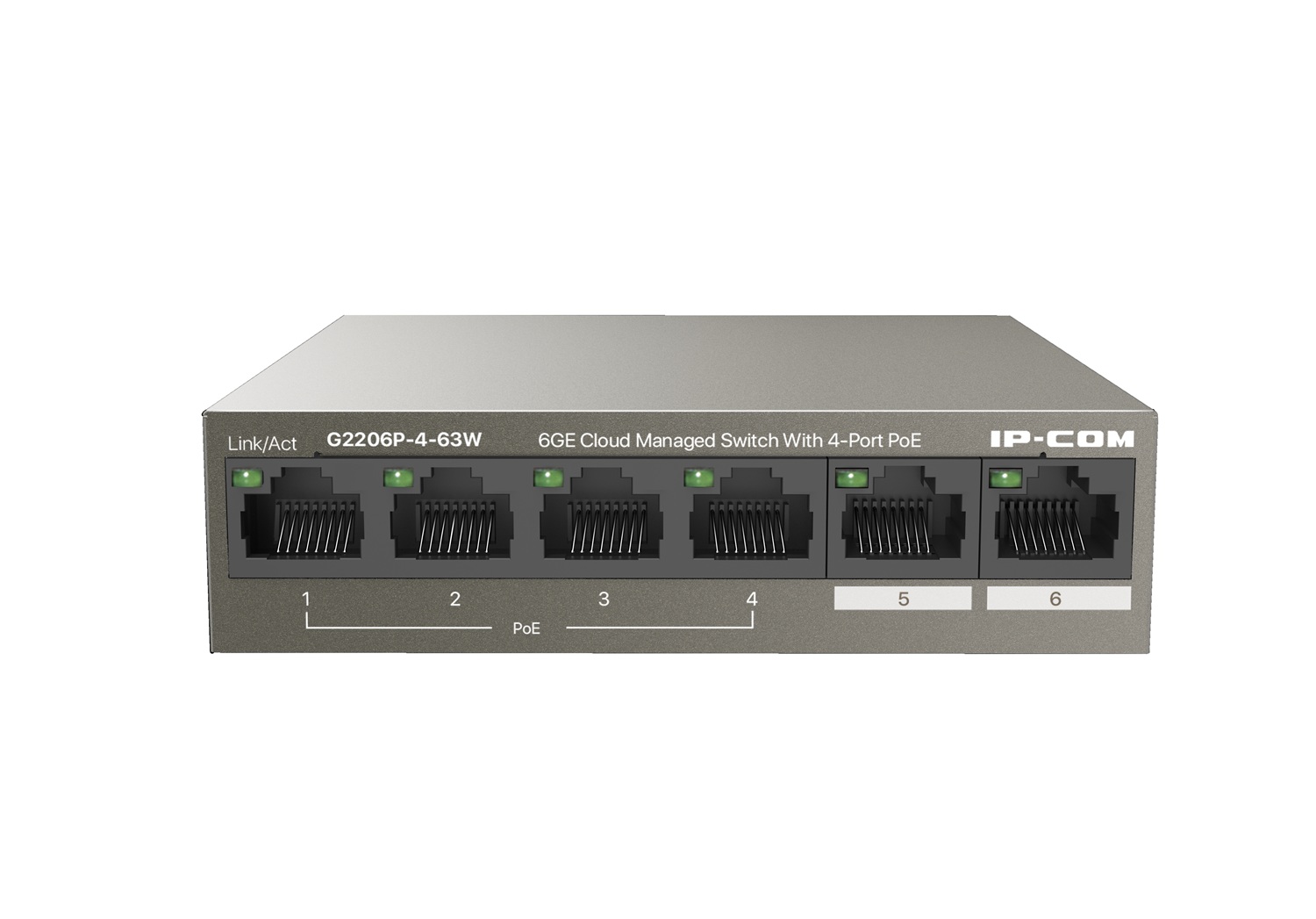

IP-COM Switch 6Port Gigabit 6xGE PoE 63W G2206P Cloud Managment Rackmount

Технички спецификации

G2206P-4-63W v2.0 6GE Cloud Managed Switch With 4-Port PoE G2206P-4-63W is a smart cloud-managed PoE switch independently designed by IP-COM. The switch provides 4 gigabit standard PoE ports with a maximum PoE power output of 58 W. Besides, the switch can be managed through both the IP-COM ProFi Cloud web UI and ProFi App, realizing easy and efficient network maintenance at a lower cost. • Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af/at, IEEE 802.1q standards • 4 ? 10/100/1000 Base-T Ethernet ports (PoE & Data), 2 ? 10/100/1000 Base-T uplink ports (Data) • 2 K MAC address table and MAC address auto learning • IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control • 12 Gbps switching fabric for non-blocking line-speed forwarding • Maximum PoE output of a single port: 30 W, Total PoE output of the switch: 58 W • ProFi Cloud web UI and App management • 250 m network extension, PoE management, QVLAN, VLAN transparent transmission, traffic statistics, loop guard, DHCP Snooping and MAC address binding Specification Hardware specifications

Network standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1q, IEEE802.3af, IEEE802.3at

LED indicators

One Link/Act LED indicator for each port; One PWR LED indicator for each device; One SYS LED indicator for each device

Fixed ports

4 ? 10/100/1000 Base-T Ethernet ports (PoE & Data); 2 ? 100/1000 Base-T Ethernet port (Data)

Port

6 kV;

Power supply

6 kV

Store-and-forward Switching capacity

12 Gbps

Packet forwarding rate

8.9

Mpps Switching buffer

NA

MAC address table

2 K

PoE Power Supply

IEEE 802.3af/at standards PoE power supply on ports 1-4; Voltage of cores 1, 2, 4, 5 is +, and cores 3, 6, 7, 8 is -

Input voltage

100 - 240V AC 50/60Hz Dimensions (L x W x H): 100 mm ? 100 mm ? 26 mm

Total power consumption

<63 W;

Maximum PoE output

58 W

Operating temperature

0°C - 45°C;

Storage temperature

-40°C - 70°C;

Operating humidity

(10% - 90%) RH, non-condensing;

Storage humidity

(5% - 90%) RH, non-condensing

Certificates

FCC, CE, RoHS Software features

PoE Management

Support dynamic display of PoE consumption power and PoE remaining power; Support PoE ports on and off

Security Features

Support whitelist binding of MAC addresses, ports and VLAN; Support port isolation

VLAN

Support VLAN transparent transmission; Support IEEE 802.1q

VLAN DHCP

Support DHCP Client; Support DHCP

Snooping Port Properties

Support port flow control; Support port isolation; Support N:1 port mirroring; Support port statistics of received and transmitted packets, conflict packets and CRC error packets

Rate Limit

Support ingress and egress rate limits on ports

Loop Guard

Support loop detection and guard on each port

Storm Control

Support storm control on ports Upgrade,

Import and Export

Support HTTP upgrade
