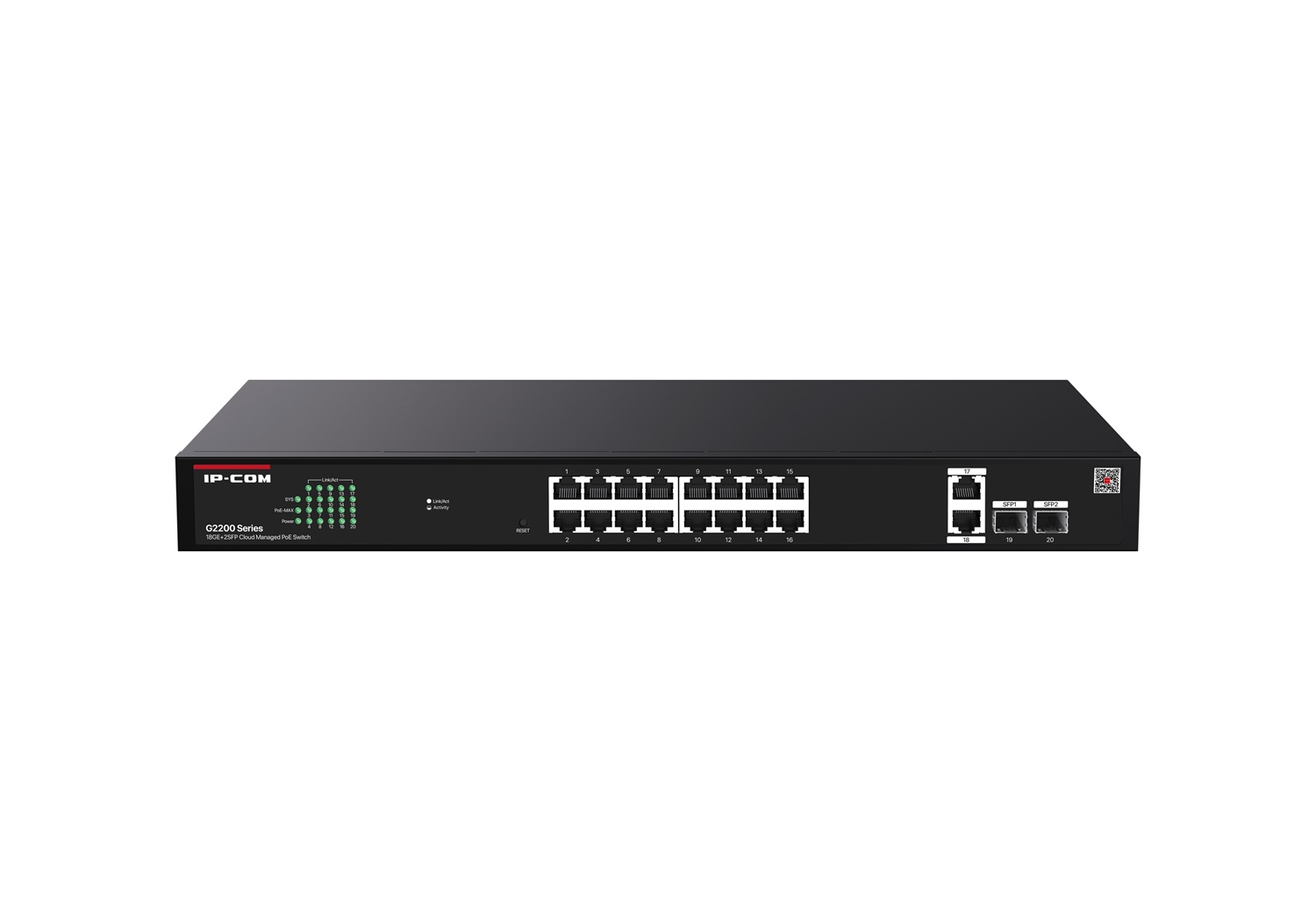

IP-COM Switch 16Port Gigabit 18xGE 2xSFP PoE 250W G2220P Cloud Managment Rackmount

Технички спецификации

G2220P-16-250W 18GE+2SFP Cloud Managed PoE Switch G2220P-16-250W is a 20-port intelligent cloud-managed PoE switch independently designed by IP-COM. Supports cloud WEB platform management and APP management, supports 802.3AF/AT, single port maximum output 30W, whole machine 250W, automatically detects loops and private routers at the same time, network maintenance is more efficient, and after-sales costs are affordable. User-configured switch, supports watchdog, 7*24 hours automatic operation and maintenance, and is an ideal choice for accessing PD devices such as APs, cameras, and IP phones. • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3x, IEEE802.3z, IEEE802.1p, IEEE802.1q standards • 18 10/100/1000 Base-T Ethernet ports, 2 1000 Base-X SFP optical ports • 8 K MAC address table and MAC address auto learning • 16 PoE ports, single port output power 30W, Total power budget 230W • 40Gbps non-blocking wire-speed forwarding • Web platform remote management, mobile APP management • 4M large cache • Support QVLAN, DHCP Snooping, anti-loop, PoE timing, watchdog, etc.

Specification Hardware Dimensions

440mm*178mm*44mm

Rack mounting

support;

Desktop mounting

support;

Wall mounting

support

Metal Interfaces

(18)1GE RJ45 ports; (2)1GE SFP ports

PoE interface

(16) PoE (Pins 1, 2+; 3, 6-)

LED Indicator

Power; Link/Act; PoE

MAX Switching capacity

40Gbps

Forwarding rate

29.8Mpps

Power method

100-240V AC,50 / 60Hz

Power consumption

250W

Total available PoE

230W

Total available PoE

30W

Port

6 KV; Power:6 KV

Button

Funtion mode

Button Operating temperature

0°C - 45?

Storage temperature

-40°C - 70°C

Operating humidity

10% - 90%,non-condensing

Storage humidity

5% - 90%,non-condensing

Certifications

FCC, CE, RoHS

Software PoE Management

Support dynamic display of PoE consumption power and PoE remaining power; Support PoE ports on and off

Security features

Support whitelist binding of MAC addresses, ports and VLAN; Support port isolation

VLAN

Support VLAN transparent transmission; Support IEEE 802.1q

VLAN DHCP Server

Support

DHCP Client STP

Support loop guard on each port

Support N

1 port mirroring

QoS

Support storm control on ports; Support ingress and egress rate limits on ports; Support port flow control

Cloud Management

Support configuration delivery from ProFi Cloud management platform; Support ProFi App management; Support log reporting and fault detection;

Support remote maintenance

reboot, backup, upgrade

Loading and upgrade

Support HTTP upgrade; Support Configuration import and export

Management and maintenance

Support web management and maintenance; Support Ping and Tracert tests; Support VCT https://www.ip-com.com.cn/en/product/g2220p-16-250w.html
