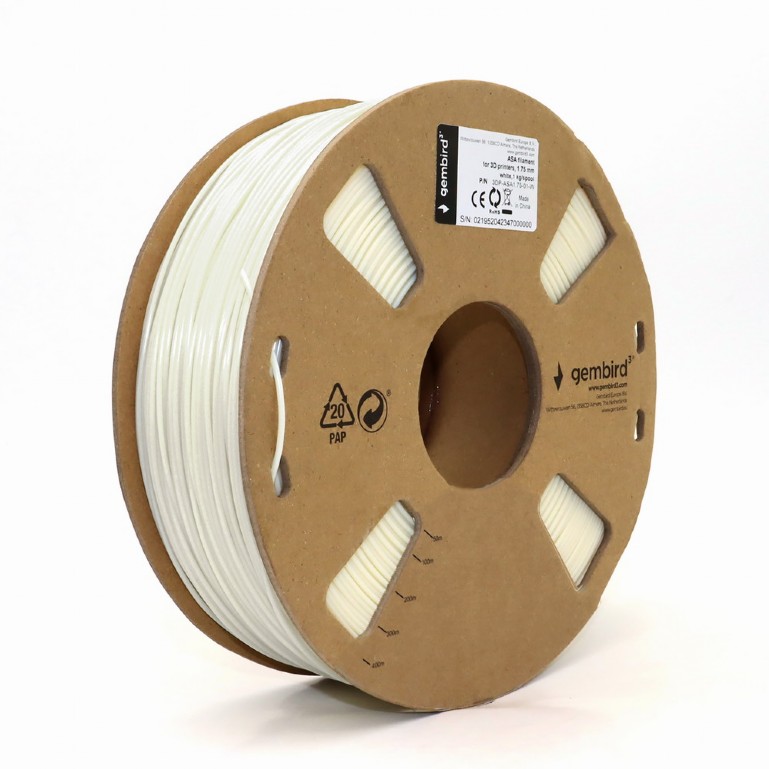

Filament for 3D Printer ASA 1.75mm Gembird White

Технички спецификации

Material

ASA (KIBILAC PW-997S material), 1.75 mm diameter

Weight

1 kg/spool (2.2 lbs) Density at 240°C: 1.057 g/cm3

Printing temperature

230-250 °C

Hot Pad

80-120 °C Melt Flow Index g/10 min

ASTM

16g/10 min (for test method ISO1133, 220°C x 10 Kg (98N))

Heat Deflection temperature

92°C (for test method ASTM D-648)

Vicat Softening Temperature

107°C (for test method ASTMD-1525, ISO 306)

Tensile Strength

440 kg/cm2 Mpa (for test method ASTMD-638( ISO527))

Flexural Strength

780 kg/cm2 Mpa (for test method ASTMD-790( ISO178))

Flexural Modulus

2750 kg/cm2 Mpa (for test method ASTMD-790( ISO178))

Rockwell Hardness

R103 (for test method ASTMD-785( ISO2039/2)) Yield Strength at 50 mm/min: 31

MPa Impact Strength

8.7 KJ/m2

Ensile Break

2-3 %

Diameter

1.75 ± 0.05 mm

Spool dimensions

200 mm diameter x 67 mm height x 53 mm central hole A 3D printer with 1.75 mm extruder of temperature around 240 °C, suitable for ASA filament
