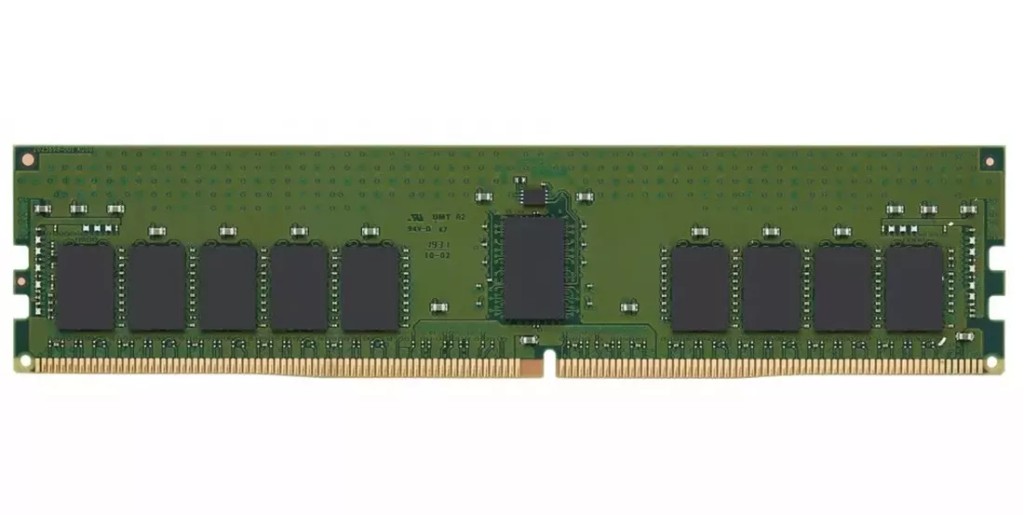

DIMM 48GB DDR5 5600MHz Kingston ECC Unbuffered CL46

Технички спецификации

Kingston's KSM56E46BD8KM-48HM is a 6G x 72-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 3G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows: FEATURES •

Power Supply

VDD = 1.1V Typical • VDDQ = 1.1V Typical • VPP = 1.8V Typical • VDDSPD = 1.8V to 2.0V • On-Die ECC • x72 ECC (x36, 2 independent I/O sub channels) • 32 internal banks • Hard/Soft Post Package Repair • Sideband access with I3C/I2C •

PCB

Height 1.23” (31.25mm) • RoHS Compliant and Halogen-Free SPECIFICATION CL(IDD): 46 cycles Row Cycle Time (tRCmin): 48ns(min.) Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.) Row Active Time (tRASmin): 32ns(min.) Row Precharge Time (tRPmin): 16ns(min.) UL

Rating

94 V - 0

Operating Temperature

0°C to +95°C

Storage Temperature

-55 °C to +100 °C

Module Assembly DRAM

HYNIX (M-DIE)
