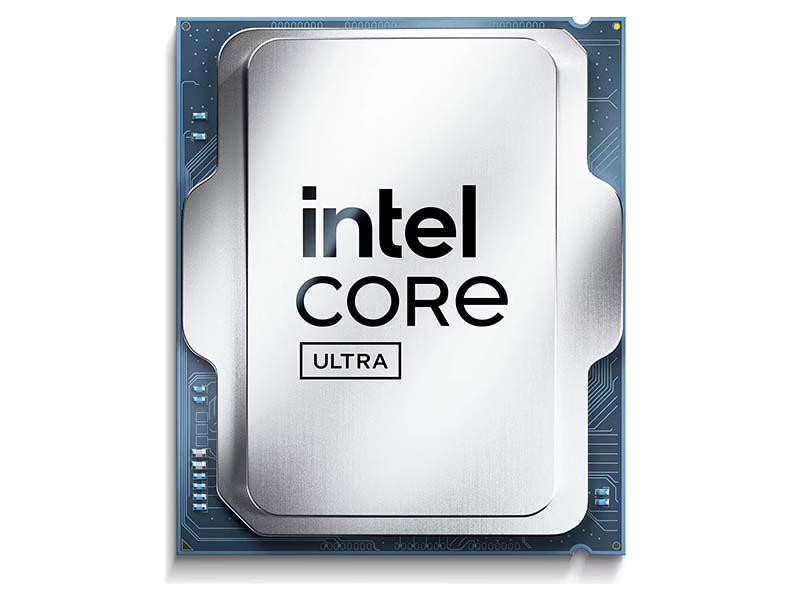

CPU Intel Core Ultra 5 250K Plus Arrow Lake 18-Core E3.3GHz/P4.2GHz LGA1851 30MB TRAY w/o Cooler

Технички спецификации

Essentials Product Collection

Intel® Core™ Ultra Processors (Series 2)

Code Name

Products formerly Arrow

Desktop Processor Number

250K PLUS Overall Peak TOPS (Int8): 30 CPU

Specifications Total Cores

18 # of

Performance-cores

6 # of

Efficient-cores

12 # of

Low Power Efficient-cores

0

Total Threads

18

Max Turbo Frequency

5.3 GHz Performance-core

Max Turbo Frequency

5.3 GHz Efficient-core

Max Turbo Frequency

4.6 GHz

Performance-core Base Frequency

4.2 GHz

Efficient-core Base Frequency

3.3

GHz Cache

30 MB Intel® Smart Cache Total L2

Cache

30 MB

Processor Base Power

125 W

Maximum Turbo Power

159 W Intel® Deep Learning Boost (Intel® DL Boost) on

CPU

Yes AI Software Frameworks

Supported by CPU

OpenVINO™ | WindowsML | DirectML | ONNX RT |

WebNN CPU Lithography

TSMC N3B Memory Specifications Max Memory Size (dependent on memory type): 256 GB

Memory Types

Up To DDR5 7200 MT/s Max # of

Memory Channels

2 ECC Memory Supported : Yes GPU

Specifications GPU Name

Intel® Graphics

Graphics Base Frequency

300 MHz Graphics

Max Dynamic Frequency

1.9 GHz GPU Peak TOPS (Int8): 8

Graphics Output

eDP1.4b | DP 2.1 UHBR20 | HDMI 2.1

FRL Xe-cores

4 Max Resolution (HDMI): 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)7680 x 4320 @ 60Hz (HDMI 2.1 FRL) Max Resolution (DP): 7680 x 4320 @ 60Hz Max Resolution (eDP - Integrated Flat Panel): 3840 x 2400 @ 120Hz DirectX*

Support

12 OpenGL*

Support

4.5 OpenCL*

Support

3 H.264

Hardware Encode/Decode

Yes H.265 (HEVC)

Hardware Encode/Decode

Yes AV1

Encode/Decode

Yes Intel®

Quick Sync Video

Yes # of Displays Supported : 4

Device ID

0x7D67 Intel® Deep Learning Boost (Intel® DL Boost) on

GPU

Yes AI Software Frameworks

Supported by GPU

OpenVINO™ | WindowsML | DirectML | ONNX RT | WebGPU NPU

Specifications NPU Name

Intel® AI Boost NPU Peak TOPS (Int8): 13

Sparsity Support

Yes Windows

Studio Effects Support

Yes AI Software Frameworks

Supported by NPU

OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN Expansion Options Direct Media Interface (DMI)

Revision

4 Max # of

DMI Lanes

8 Intel® Thunderbolt™ 4:

Yes Scalability

1S Only

PCI Express Revision

5.0 and 4.0 PCI Express Configurations : Up to 1x16+2x4 | 2x8+2x4 | 1x8+4x4 Max # of

PCI Express Lanes

24 Package

Specifications Sockets Supported

FCLGA1851

Thermal Solution Specification

PCG 2020A

Max Operating Temperature

105 °C

Package Size

45 mm x 37.5 mm Advanced Technologies Intel® Gaussian &

Neural Accelerator

3.5 Intel®

Thread Director

Yes Intel®

Speed Shift Technology

Yes Intel® Turbo Boost Technology : 2.0 Intel® Hyper-Threading Technology : No Intel® 64 :

Yes Instruction Set

64-bit

Instruction Set Extensions

Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2

Idle States

Yes Enhanced Intel SpeedStep®

Technology

Yes

Thermal Monitoring Technologies

Yes Intel® Volume Management Device (VMD): Yes Security & Reliability
