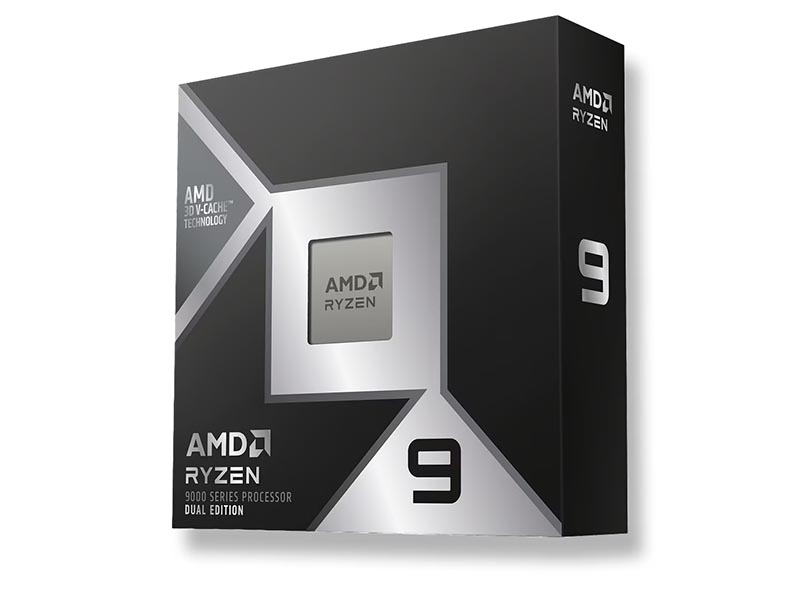

CPU AMD Ryzen 9 9950X3D2 Dual Edition 16-Core 4.3GHz AM5 192MB BOX w/o Cooler

Технички спецификации

General Specifications Name

AMD Ryzen™ 9 9950X3D2

Ryzen Series

Ryzen 9000

Series Form Factor

Desktops , Boxed

Processor Market Segment

Enthusiast

Desktop Former Codename

Granite Ridge AM5

Processor Architecture

Zen 5 # of

CPU Cores

16 Multithreading (SMT): Yes # of

Threads

32 Max. Boost Clock : Up to 5.6 GHz Base Clock : 4.3 GHz L1

Cache

1280 KB L2

Cache

16 MB L3

Cache

192 MB

Default TDP

200W Processor Technology for

CPU Cores

TSMC 4nm FinFET Processor Technology for

I/O Die

TSMC 6nm FinFET

Package Die Count

3 Unlocked for Overclocking AMD EXPO™ Memory Overclocking Technology Precision Boost Overdrive Curve Optimizer Voltage Offsets AMD Ryzen™ Master

Support CPU Socket

AM5

Supporting Chipsets

A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64 Thermal Solution (PIB): Not

Included Recommended Cooler

Liquid cooler recommended for optimal performance Max. Operating Temperature (Tjmax): 95°C *OS

Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit Connectivity Native USB 3.2 Gen 2 (10Gbps): 4 Native USB 2.0 (480Mbps): 1 PCI Express®

Version

PCIe® 5.0 Native PCIe® Lanes (Total/Usable): 28 , 24

NVMe Support

Boot , RAID0 , RAID1 , RAID5 , RAID10

System Memory Type

DDR5

Memory Channels

2 Max.

Memory

256 GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600

ECC Support

Yes (Requires mobo support) Graphics

Capabilities Graphics Model

AMD Radeon™ Graphics

Graphics Core Count

2

Graphics Frequency

2200 MHz USB Type-C® DisplayPort™

Alternate Mode

Yes Product IDs

Product ID Boxed

100-100001978WOF

Product ID Tray

100-000001978

Security

AMD Secure Processor AMD Platform Secure Boot Windows Secure Boot UEFI Secure Boot Windows Device Guard Supervisor Mode Execution Prevention (SMEP) Guest Mode Execution (GMET) Trap Virtualization-Based Security (VBS) Windows Secured-Core PC Firmware TPM AMD-V (SVM) AMD AVIC (Interrupt Virtualization) AMD-Vi (I/O MMU Virtualization) Second Level Address Translation (SLAT) Advanced Encryption Standard New Instructions (AES-NI) AMD Enhanced Virus Protection (NX bit) AMD Shadow Stack
