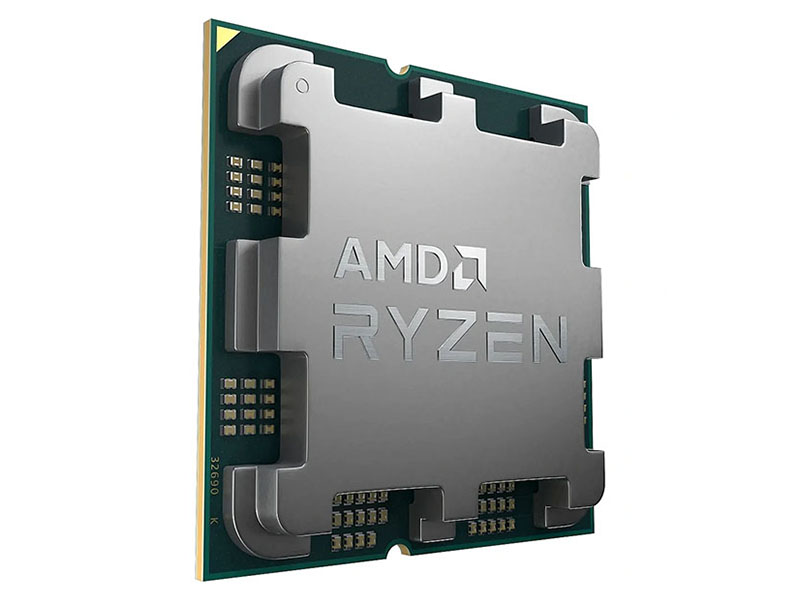

CPU AMD Ryzen 5 9600X 6-Core 3.9GHz AM5 38MB TRAY w/o Cooler

Технички спецификации

General Specifications Name

AMD Ryzen™ 5 9600X

Ryzen Series

Ryzen 9000

Series Form Factor

Desktops , Boxed

Processor Market Segment

Enthusiast Desktop

AMD PRO Technologies

No

Global Former Codename

Granite Ridge AM5

Architecture

Zen 5 # of

CPU Cores

6 Multithreading (SMT): Yes # of

Threads

12 Max. Boost Clock : Up to 5.4 GHz Base Clock : 3.9 GHz L1

Cache

480 KB L2

Cache

6 MB L3

Cache

32 MB

Default TDP

65W Processor Technology for

CPU Cores

TSMC 4nm FinFET Processor Technology for

I/O Die

TSMC 6nm FinFET

Package Die Count

2 Unlocked for Overclocking : Yes AMD EXPO™

Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes Curve

Optimizer Voltage Offsets

Yes AMD Ryzen™

Yes CPU Socket

AM5

Supporting Chipsets

A620 , X670E , X670 , B650E , B650 , X870E , X870

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB): Not

Included Recommended Cooler

Premium air cooler recommended for optimal performance Max. Operating Temperature (Tjmax): 95°C

Launch Date

08/08/2024 *OS

Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit Connectivity Native USB 3.2 Gen 2 (10Gbps)

Ports

4 Native USB 2.0 (480Mbps)

Ports

1 PCI Express®

Version

PCIe® 5.0 Native PCIe® Lanes (Total/Usable): 28 , 24 Additional Usable PCIe

Lanes from Motherboard

X870E 8x Gen4 X870 4x Gen4 X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4

NVMe Support

Boot , RAID0 , RAID1 , RAID5 , RAID10

System Memory Type

DDR5

Memory Channels

2 Max.

Memory

192 GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600

ECC Support

Yes (Requires mobo support) Graphics

Capabilities Graphics Model

AMD Radeon™ Graphics

Graphics Core Count

2

Graphics Frequency

2200 MHz USB Type-C® DisplayPort™

Alternate Mode

Yes Product IDs

Product ID Boxed

100-100001405WOF

Product ID Tray

100-000001405 Key

Features Supported Technologies

AMD EXPO™ Technology , AMD Ryzen™ Technologies
