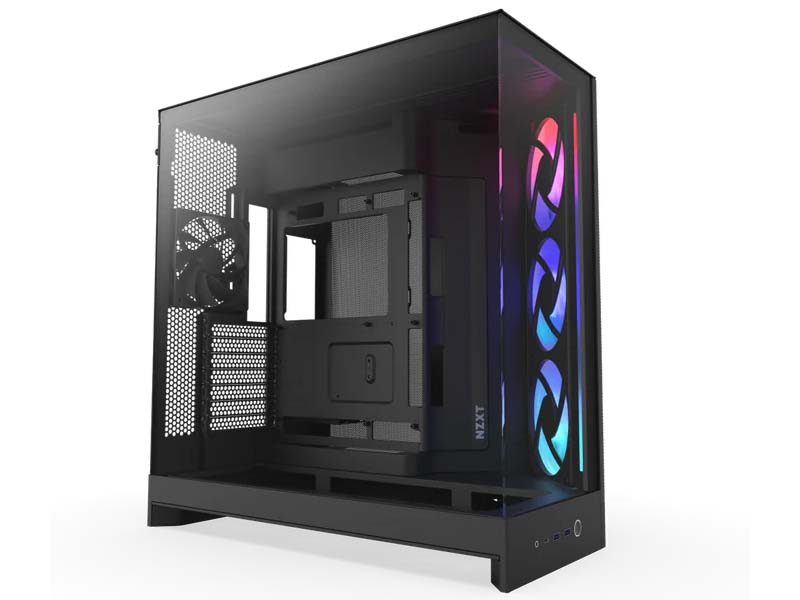

ATX Midi Tower Case NZXT H9 Flow (2025) RGB Black w/USB 3.2, Type-C, 1x 420mm (F420 RGB), 1x F120Q

Технички спецификации

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance. Tech

Specs Dimensions Height

506 mm (19.9 in)

Width

315 mm (12.4 in)

Depth

481 mm (18.9 in)

Volume

76.7 L

Weight

12.6 kg (27.78 lb)

Mid-tower Motherboard Compatibility

E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX Rear-Connecting Motherboard Support (BTF, Project Zero): Yes (ATX)

Materials

SGCC steel, clear tempered glass (white), tinted tempered glass (black) Clearance

CPU Cooler Height

165 mm

GPU Length

Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)

PSU Length

200 mm Top Radiator &

Fan Thickness

Up to 80 mm (360 mm) Up to 62 mm (420 mm) Front I/O Ports USB 3.2

Type-A

2 USB 3.2 Gen2x2

Type-C

1

Headset Jack

1

Expansion Slots Standard

7

Vertical

0 Drive Bays 2.5": 4+2 3.5": 2

Fan Support Front-Right

3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)

Top

3 x 120 mm / 3 x 140 mm

Bottom

3 x 120 mm / 3 x 140 mm

Rear

1 x 120 mm (1 x F120Q (CV) included)

Radiator Support Front-Right

Up to 420 mm

Top

Up to 420 mm

Bottom

Up to 360 mm

Rear

Up to 120 mm Fan Specs - F420

RGB Core Model

F420

RGB Core Speed

2,000 ± 200

RPM Airflow

98.61

CFM Static Pressure

3.2 mmH2O

Noise

34.5 dBA

Fan Connector

8-pin w/ splitter Fan Specs - F120Q (CV)

Model

F120Q (CV)

Speed

1,350 ± 150

RPM Airflow

60.2

CFM Static Pressure

1.05 mmH2O

Noise

24.1 dBA

Fan Connector

3-pin
