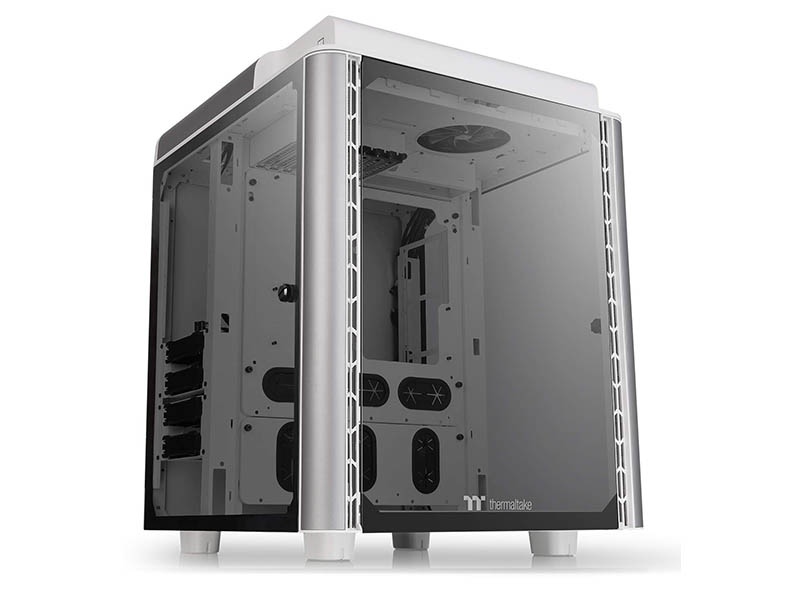

E-ATX Full Tower Case Thermaltake Level 20 HT Snow Edition

Технички спецификации

Level 20 HT Snow Edition is an E-ATX full tower chassis that comes with four 4mm thick tempered glass windows and two preinstalled 140mm standard fans up top.

P/N

CA-1P6-00F6WN-00

Series

Level 20

Model

Level 20 HT

Snow CASE TYPE

Full Tower Dimension (H x W x D): 613 x 468 x 503 mm (24.13 x 18.43 x 19.8 inch)

NET WEIGHT

20.38 kg / 44.93 lb

PANEL

4 x Tempered Glass (4mm thickness)

Color

Exterior & Interior :

White MATERIAL

SPCC COOLING SYSTEM Top (exhaust) : 2 x 140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA)

Drive Bays

-Accessible: 4 x 3.5’’ or 2.5’’ (With HDD Cage) -Hidden: 1 x 2.5’’ (With HDD Bracket)

EXPANSION SLOTS

8

MOTHERBOARDS

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) , 12” x 13” (E-ATX)

I/O Port

1 x USB 3.1 (Gen 2) Type C, 2 x USB 2.0, 2 x USB 3.0, 1 x HD

Audio PSU

Standard PS2 PSU (optional) FAN SUPPORT Left /

Right Side

3 x 120mm , 2 x 140mm

Top

2 x 120mm , 2 x 140mm

Rear

2 x 120mm , 2 x 140mm

Bottom

3 x 120mm RADIATOR SUPPORT Left /

Right Side

1 x 360mm , 1 x 280mm

Bottom

1 x 360mm

CLEARANCE

CPU cooler height limitation: 260mm

VGA length limitation

400mm

PSU length limitation

200mm https://www.thermaltake.com/level-20-ht-snow-chassis.html
